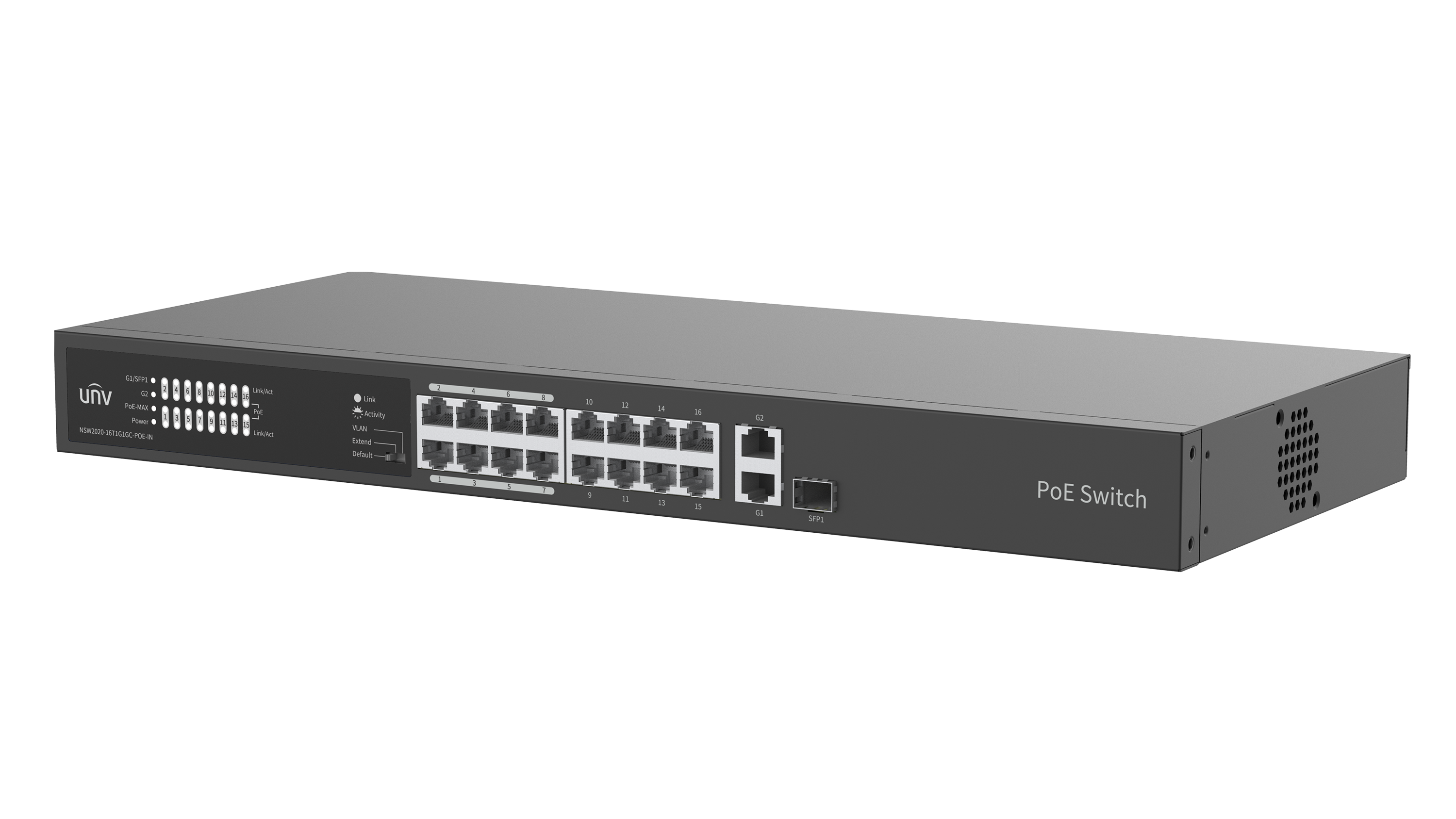

16 + 2 Port PoE Network Switch 10/100 Mbps

Weight 0.70 Kg
Item Number NSW2020-16T1GT1GC-POE-IN
Our Price: £145.00 (inc VAT £174.00)

18 Port 10/100/Mbps Unmanaged PoE Ethernet Switch

This automatic network hub allows 18 devices to be connected at the same time. It can be used to split an internet connection to multiple devices or to create a secure internal network. There is no setup or software to install, just plug in the devices you want and it just works.


Multiple working modes to support your business needs: Default (Normal mode), Extended (Surveillance mode)
• Supports port traffic control
• Supports for secure mode (all downlink ports can communicate only with uplink ports)
• Up to 250m transmission distance on surveillance mode
• Support buffer optimization
• All metal housing, safe and reliable

Ports Type

16×100Mbps PoE ports (RJ45)+ 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports

Switching capacity

7.2 Gbps

Packet Buffer

4 M bit

Forwarding performance

5.36Mpps

Power Supply

AC: 100 to 240V, 50/60Hz

MAC

16K

PoE Standard

IEEE 802.3 at, IEEE 802.3af

PoE Mode

ModeB (4578)

Max.PoE Power

Max capacity:250W
Max capacity for single port: 30W

Standards

IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az

Cooling Fans

1

Max.Power

265W

Dimensions (W×D×H)

440*195*44mm

Weight

2.12KG

Working Mode

Default (Normal mode) : All ports can communicate with each other, VLAN (Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time, Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports

Information correct as of 13:43, 26/01/2026
