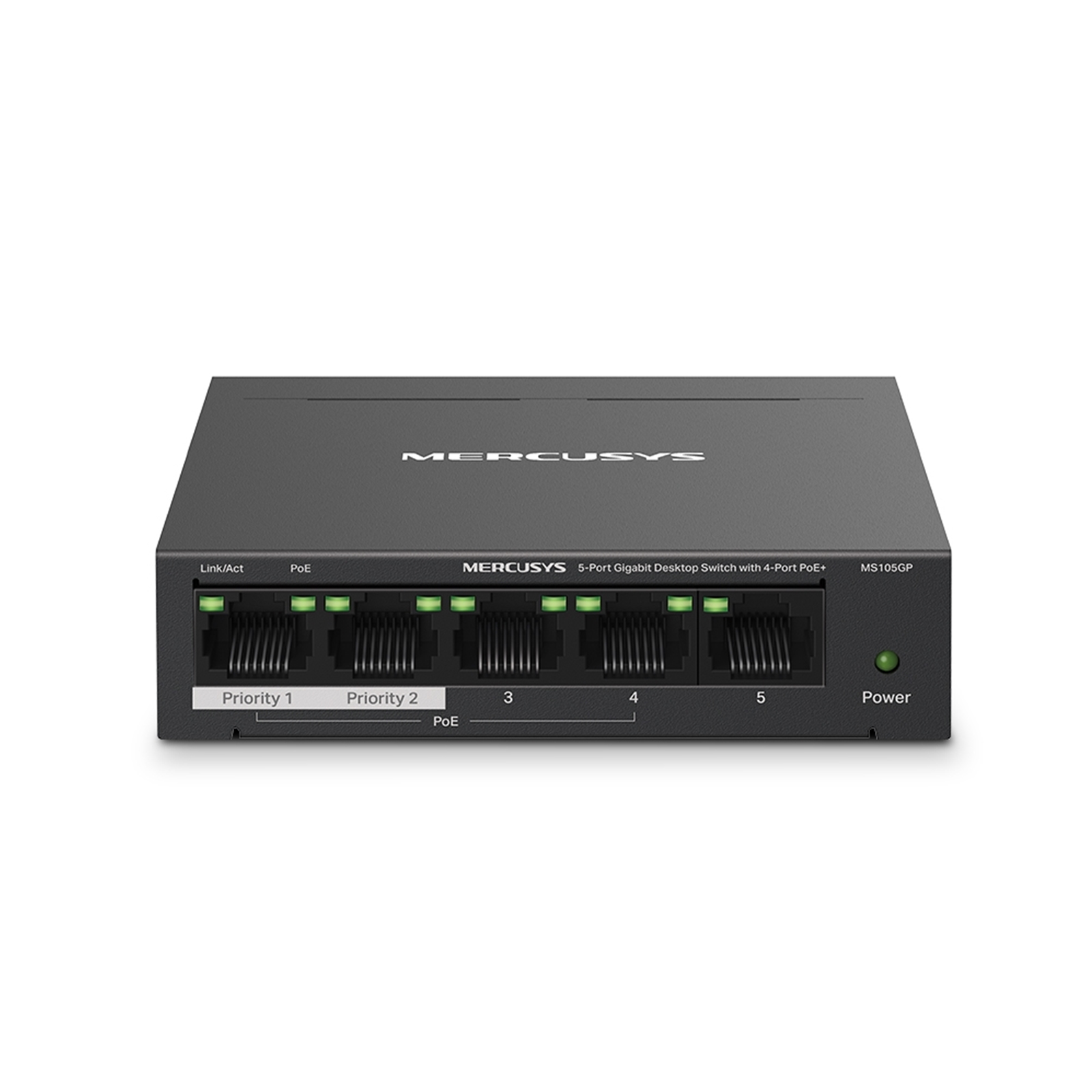

4 + 1 Port PoE Network Switch 10/100/1000 Mbps 65W
4 1 Port PoE Network Switch 10/100/1000 Mbps 65W 4 1 Port PoE Network Switch 10/100/1000 Mbps 65W
Our Price

£37.50

(inc VAT £45.00)
Weight 0.70 Kg
Item Number MS105GP
Quantity


 5 Port 10/100/Mbps Unmanaged PoE Ethernet Switch

This automatic network hub allows 5 devices to be connected at the same time. It can be used to split an internet connection to multiple devices or to create a secure internal network. There is no setup or software to install, just plug in the devices you want and it just works.

• 5× 10/100/1000 Mbps RJ45 ports
• With four PoE+ ports, transfers data and power on one single cable
• Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
• Increases PoE transmission distance to 250 m by Extend Mode*
• One click to divide traffic for specific ports for stability and security
• Works with IEEE 802.3af/at compliant PDs
• Allows for efficient heat dissipation and long network life
• Simple to use and saves time and effort

ModelMS105GP
StandardsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Interface5× 10/100/1000 Mbps RJ45 ports
Network Media (Cable)10BASE-T:2-pair UTP/STP (≤100m) of Cat. 3 or above
100BASE-TX:2-pair UTP/STP (≤100m) of Cat. 5 or above
1000BASE-T:4-pair UTP/STP (≤100m) of Cat. 5e or above
PoEPoE Standard: compatible with 802.3af/at PDs
PoE Port 1–4, up to 30 W per port
PoE Power Budget 65 W*
Auto-NegotiationYES
Auto MDI/MDIXYES
PoE Power on RJ45Power+: pin 3 & pin 6
Power -: pin 1 & pin 2
Max Power Consumption3.13W (22/50 Hz, no PD connected)
75.15W (220/50 Hz, with 65W PD connected)
Max Heat Dissipation10.64 BTU/h (no PD connected)
255.51 BTU/h (with 65 W PD connected)
Forwarding ModeStore and Forward
Switch Capacity10 Gbps
MAC Address Table2k, Auto-learning, Auto-aging
Extend ModeYES
Isolation ModeYES
Flow ConrolYES
FanlessYES
LEDPower, Link/Act, PoE Status
Dimensions99.8*98*25mm (3.9*3.9*1.0 in)
CertificationCE, RoHS
EnvironmentOperating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 10% to 90% RH, non-condensing
Storage Humidity: 5% to 90% RH, non-condensing
