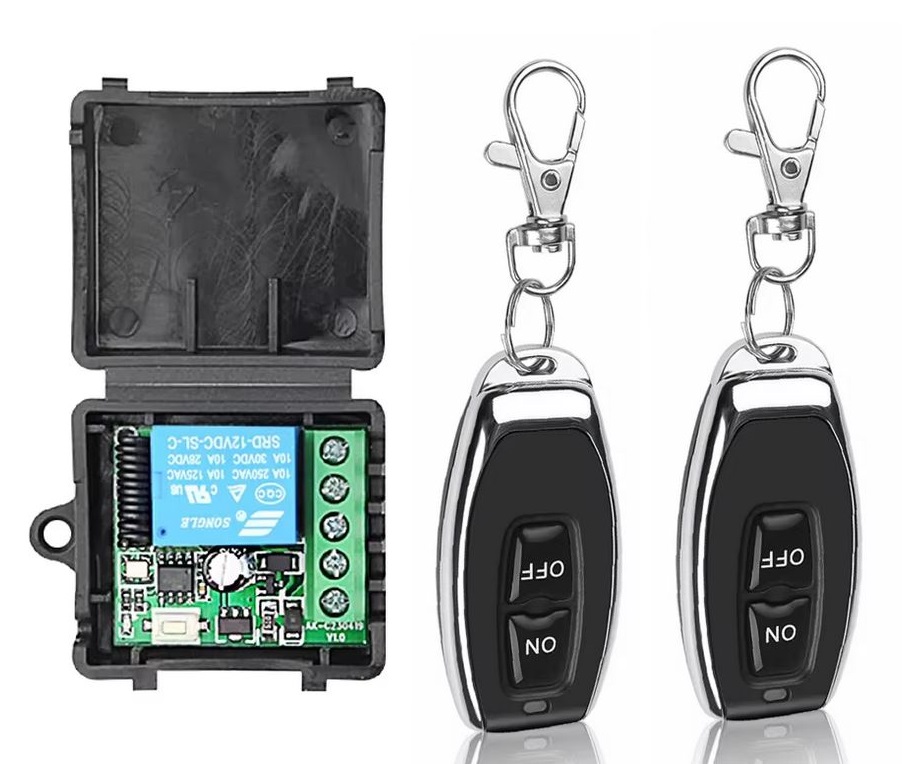

433Mhz Remote Control Wireless Switch DC 12V DC 10A Relay Receiver

This  433 Mhz remote control provides reliable and consistent performace for your remote switching needs, whether it is for a gate, home appliances or other projects. Its compact mini module design allows for easy installation and unobtrusive integration with your existing systems. With a strong long-range signal, this remote control ensures effective communication even in challenging environments.

Working Volts: DC 12
VInput Volts: 1V~250V
OutputVolts: 1V~250V
Max Current: 10A
Standby Current: <5mA
RF Frequency: 433MHz


Receiver sensitivity: >97dbm
Transmitting distance: 50 meters above

Working mode: Momentary mode, Toggle mode, Latching mode,Time Delay mode
Battery: No, NC, com


Pinout:
+V: 12V + input
- V: 12V - input
NO: normal open
COM: common
NC: normal close
