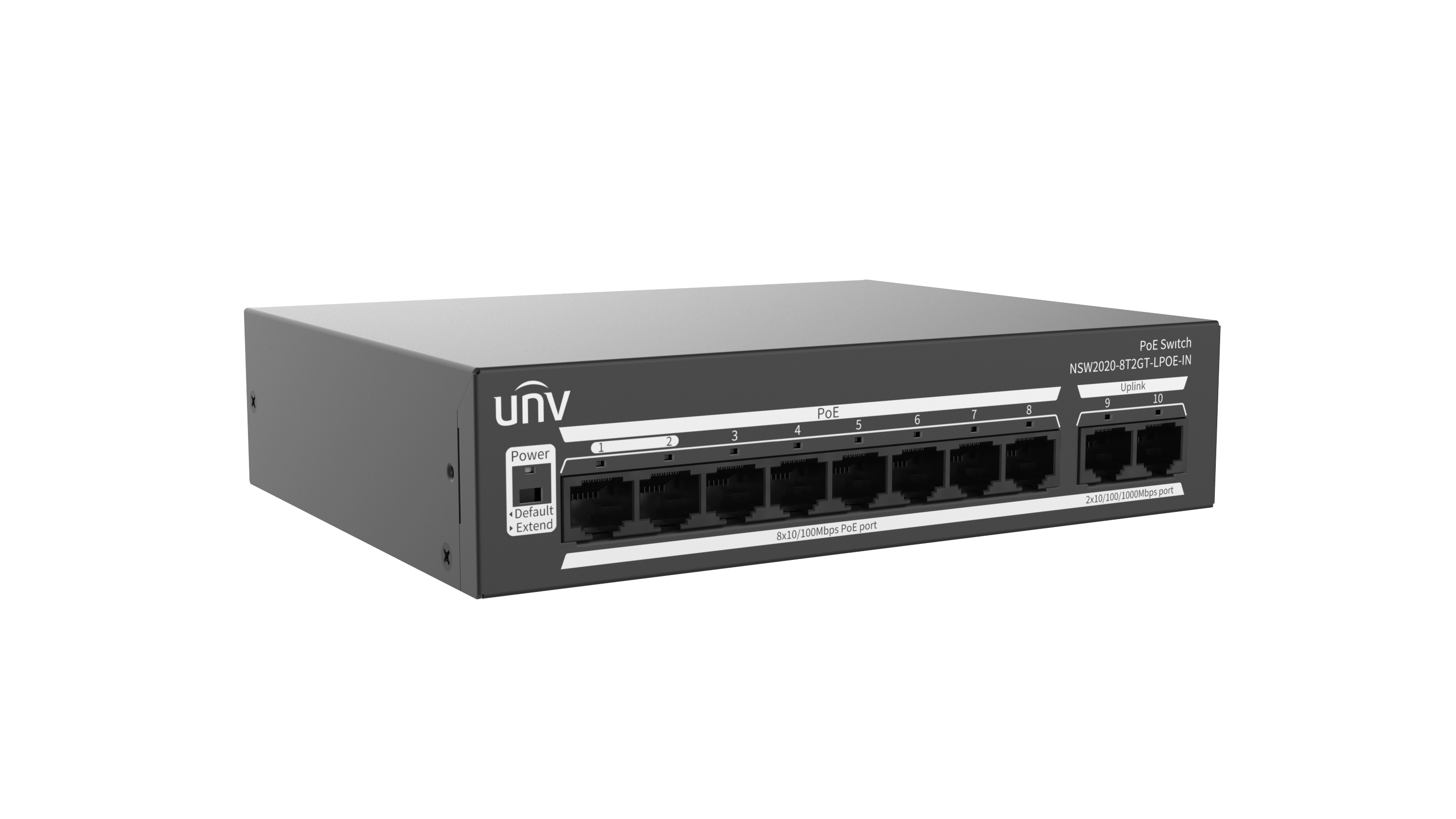

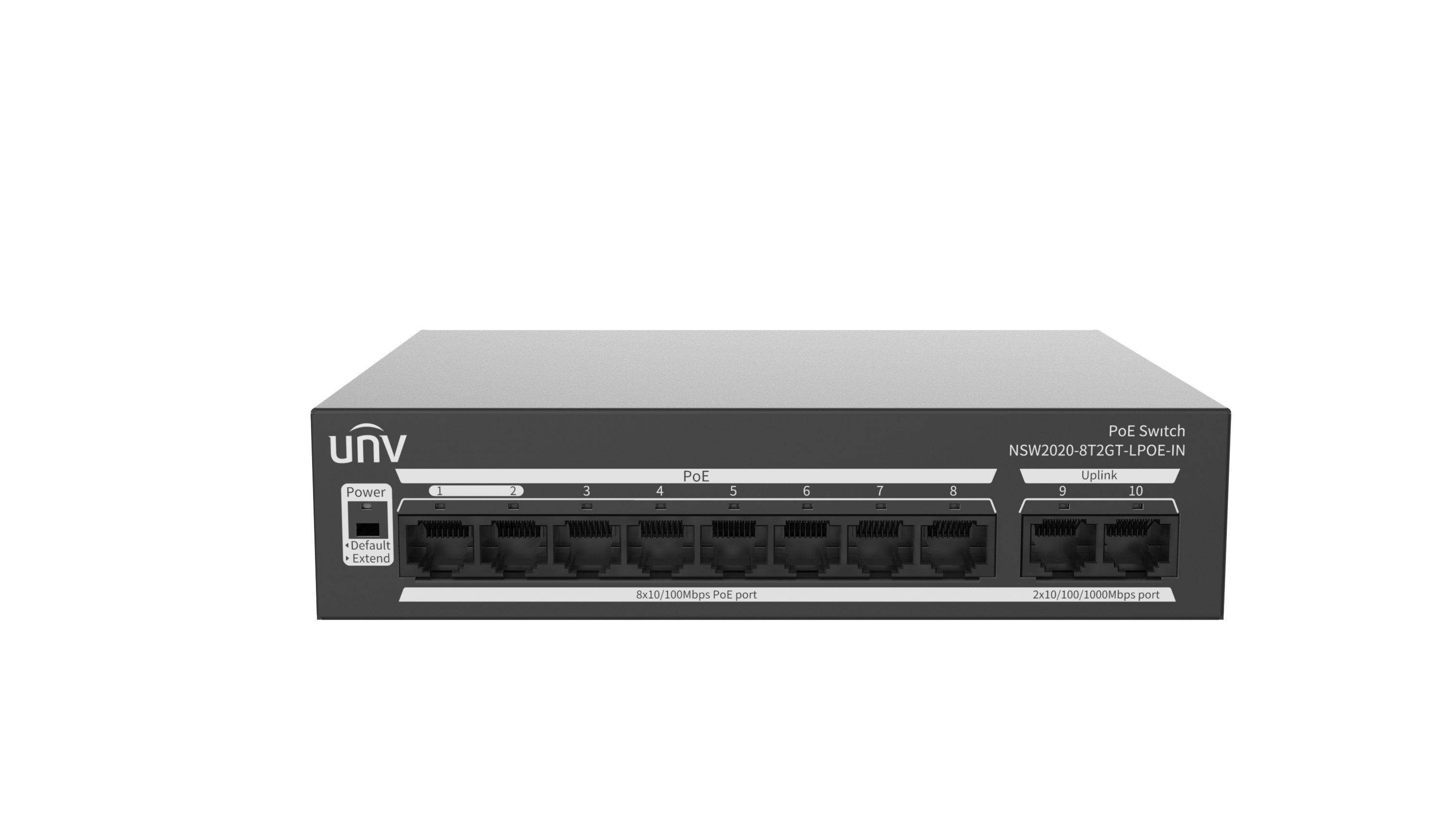

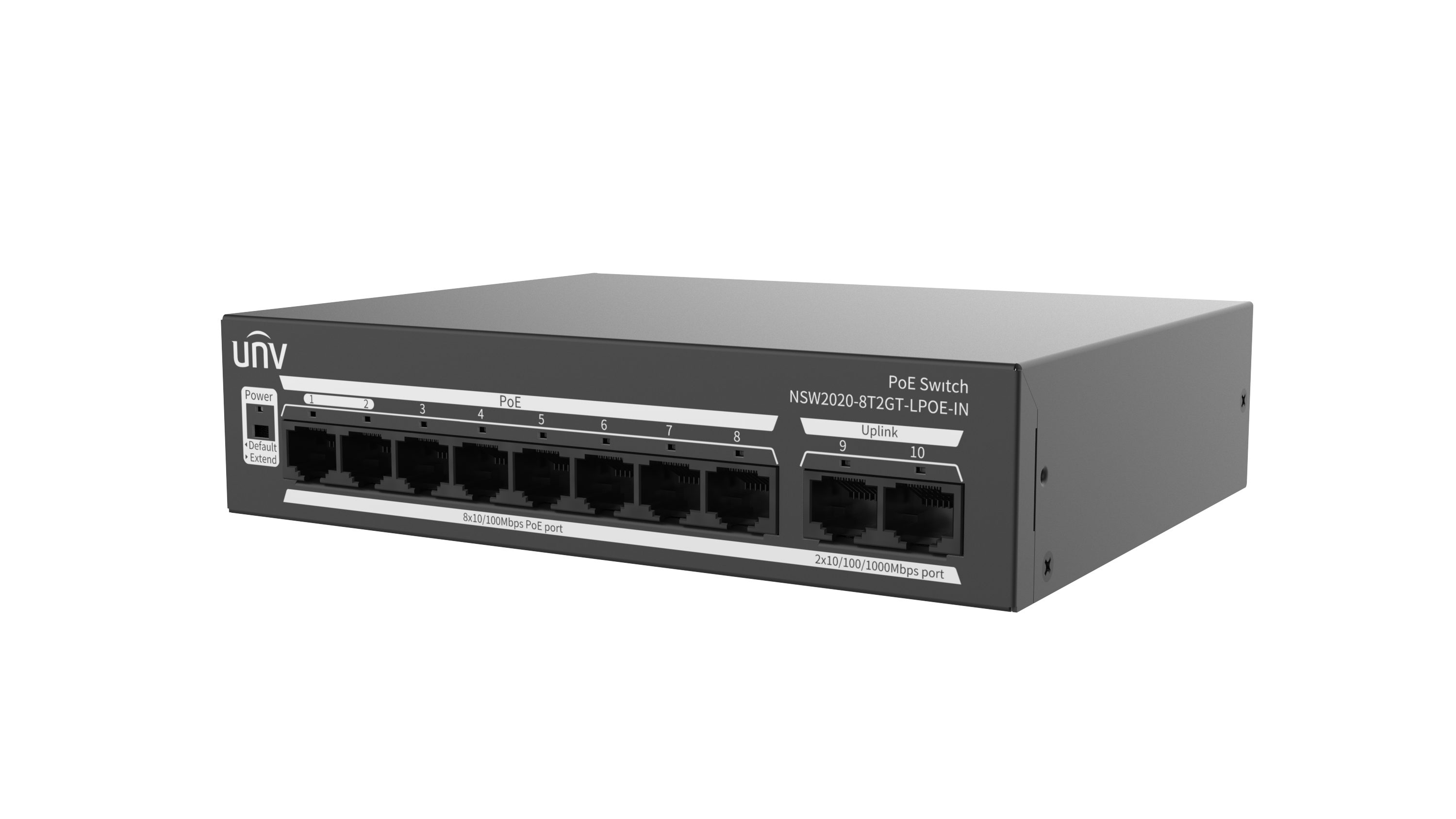

10 Port 10/100/Mbps Unmanaged PoE Ethernet Switch
This automatic network hub allows 10 devices to be connected at the same time. It can be used to split an internet connection to multiple devices or to create a secure internal network. There is no setup or software to install, just plug in the devices you want and it just works.
Multiple working modes to support your business needs: Default (Normal mode), Extended (Surveillance mode)
• Supports port traffic control
• Supports for secure mode (all downlink ports can communicate only with uplink ports)
• Up to 250m transmission distance on surveillance mode
• Support buffer optimization
• All metal housing, safe and reliable
Ports Type |
8×10/100Mbps PoE ports (RJ45),
2×10/100/1000Mbps ports |
Switching capacity |
5.6 Gbps |
Packet Buffer |
2 M bit |
Forwarding performance |
4.17Mpps |
Power Supply |
AC: 100 to 240V, 50/60Hz |
MAC |
4K |
PoE Standard |
IEEE 802.3 at, IEEE 802.3af |
PoE Mode |
ModeA (1236), ModeB (4578) |
Max.PoE Power |
Max capacity:65W
Max capacity for single port: 30W |
Standards |
IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at |
Max.Power |
75W |
Dimensions (W×D×H) |
169*132*40mm |
Weight |
0.67KG |
Working Mode |
Default (Normal mode) : All ports can communicate with each other, EXTEND (Surveillance mode): Transmission distance up to 250 meters |
