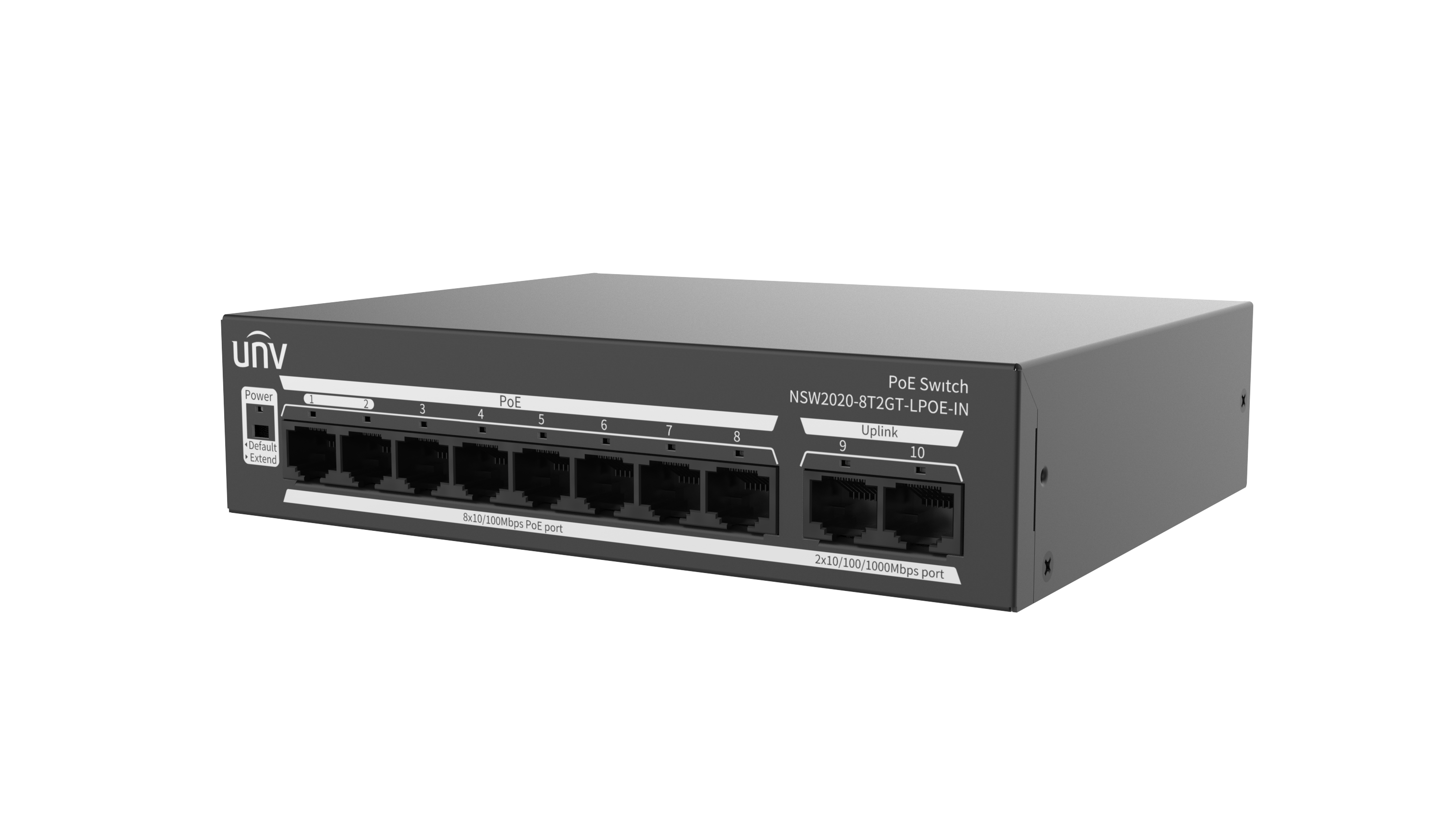

8 + 2 Port PoE Network Switch 10/100 Mbps

Weight 0.70 Kg
Item Number NSW2020-8T2GT-LPOE-IN
Our Price: £55.00 (inc VAT £66.00)

10 Port 10/100/Mbps Unmanaged PoE Ethernet Switch

This automatic network hub allows 10 devices to be connected at the same time. It can be used to split an internet connection to multiple devices or to create a secure internal network. There is no setup or software to install, just plug in the devices you want and it just works.


Multiple working modes to support your business needs: Default (Normal mode), Extended (Surveillance mode)
• Supports port traffic control
• Supports for secure mode (all downlink ports can communicate only with uplink ports)
• Up to 250m transmission distance on surveillance mode
• Support buffer optimization
• All metal housing, safe and reliable

Ports Type

8×10/100Mbps PoE ports (RJ45),
2×10/100/1000Mbps ports

Switching capacity

5.6 Gbps

Packet Buffer

2 M bit

Forwarding performance

4.17Mpps

Power Supply

AC: 100 to 240V, 50/60Hz

MAC

4K

PoE Standard

IEEE 802.3 at, IEEE 802.3af

PoE Mode

ModeA (1236), ModeB (4578)

Max.PoE Power

Max capacity:65W
Max capacity for single port: 30W

Standards

IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at

Max.Power

75W

Dimensions (W×D×H)

169*132*40mm

Weight

0.67KG

Working Mode

Default (Normal mode) : All ports can communicate with each other, EXTEND (Surveillance mode): Transmission distance up to 250 meters
