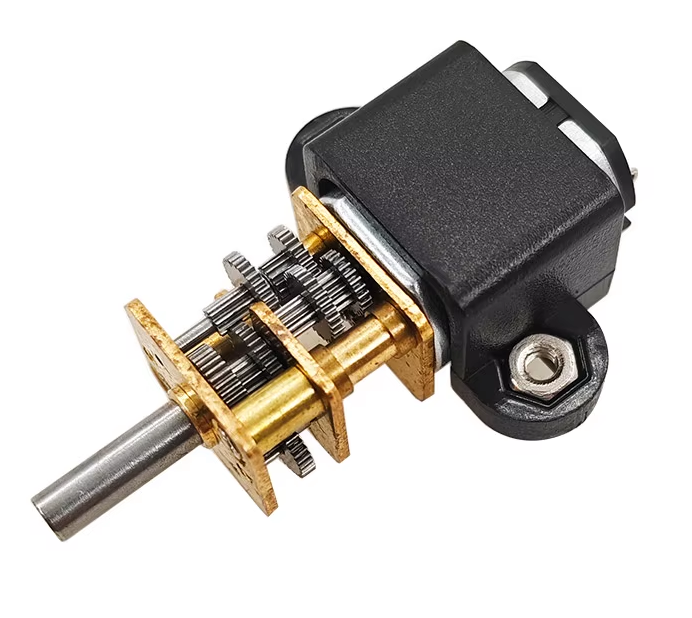

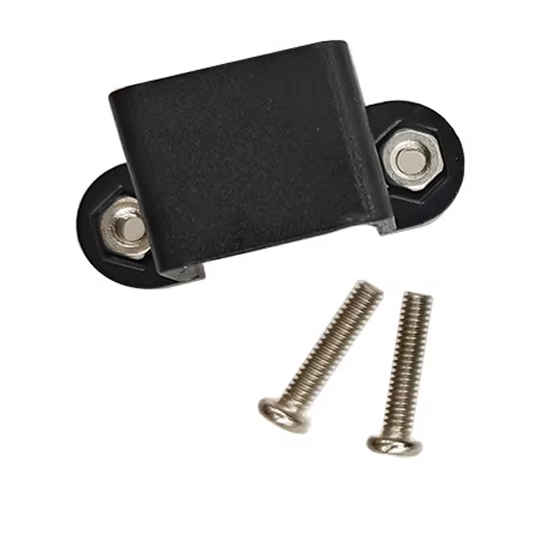

Bracket for Geared Motors
This bracket is for use with the range of geared motors bellow:
Please see the table bellow and click on the part number on the left to order the motor you require.
Model |
Voltage Range |
Rated Voltage |
Non-loaded Rotation speed [RPM] |
Non-loaded Current [A] |
Loaded Rotation speed [RPM] |
Loaded Current [A] |
Loaded Torque [Kg x Cm] |
Locked-rotor Torque [Kg x Cm] |
Locked-rotor Current [A] |
| GM3V15 |
1.5 - 5 |
3 |
15 |
0.01 |
10 |
0.04 |
0.5 |
4 |
1 |
| GM3V30 |
1.5 - 5 |
3 |
30 |
0.01 |
25 |
0.02 |
0.26 |
2 |
1 |
| GM3V60 |
1.5 - 5 |
3 |
60 |
0.01 |
50 |
0.02 |
0.2 |
1.5 |
1 |
| GM3V150 |
1.5 - 5 |
3 |
150 |
0.01 |
120 |
0.03 |
0.1 |
0.8 |
0.23 |
| GM3V300 |
1.5 - 5 |
3 |
300 |
0.14 |
250 |
0.2 |
0.07 |
0.56 |
0.5 |
| GM3V600 |
1.5 - 5 |
3 |
600 |
0.1 |
500 |
0.03 |
0.05 |
0.4 |
0.1 |
| GM3V1000 |
1.5 - 5 |
3 |
1000 |
0.03 |
700 |
0.08 |
0.02 |
0.3 |
0.3 |
| GM6V15 |
3 - 9 |
6 |
15 |
0.01 |
10 |
0.02 |
0.4 |
2 |
0.1 |
| GM6V30 |
3 - 9 |
6 |
30 |
0.02 |
25 |
0.04 |
1.2 |
10 |
1 |
| GM6V60 |
3 - 9 |
6 |
60 |
0.03 |
50 |
0.05 |
0.6 |
3.2 |
1 |
| GM6V150 |
3 - 9 |
6 |
150 |
0.03 |
120 |
0.05 |
0.35 |
2.4 |
0.25 |
| GM6V300 |
3 - 9 |
6 |
300 |
0.03 |
240 |
0.04 |
0.2 |
1.6 |
0.2 |
| GM6V600 |
3 - 9 |
6 |
600 |
0.16 |
500 |
0.23 |
0.15 |
1 |
0.56 |
| GM6V1000 |
3 - 9 |
6 |
1000 |
0.01 |
800 |
0.03 |
0.06 |
0.4 |
0.16 |
| GM12V15 |
6 - 12 |
12 |
15 |
0.01 |
10 |
0.04 |
1.2 |
4.6 |
1 |
| GM12V30 |
6 - 12 |
12 |
30 |
0.01 |
25 |
0.04 |
1.2 |
7 |
1 |
| GM12V60 |
6 - 12 |
12 |
60 |
0.04 |
40 |
0.06 |
1.8 |
16 |
1 |
| GM12V150 |
6 - 12 |
12 |
150 |
0.11 |
120 |
0.04 |
1 |
7 |
1 |
| GM12V300 |
6 - 12 |
12 |
300 |
0.05 |
240 |
0.09 |
0.6 |
4 |
0.3 |
| GM12V600 |
6 - 12 |
12 |
600 |
0.03 |
500 |
0.07 |
0.4 |
3.2 |
0.2 |
| GM12V1000 |
6 - 12 |
12 |
1000 |
0.19 |
800 |
0.28 |
0.3 |
2.4 |
0.6 |
