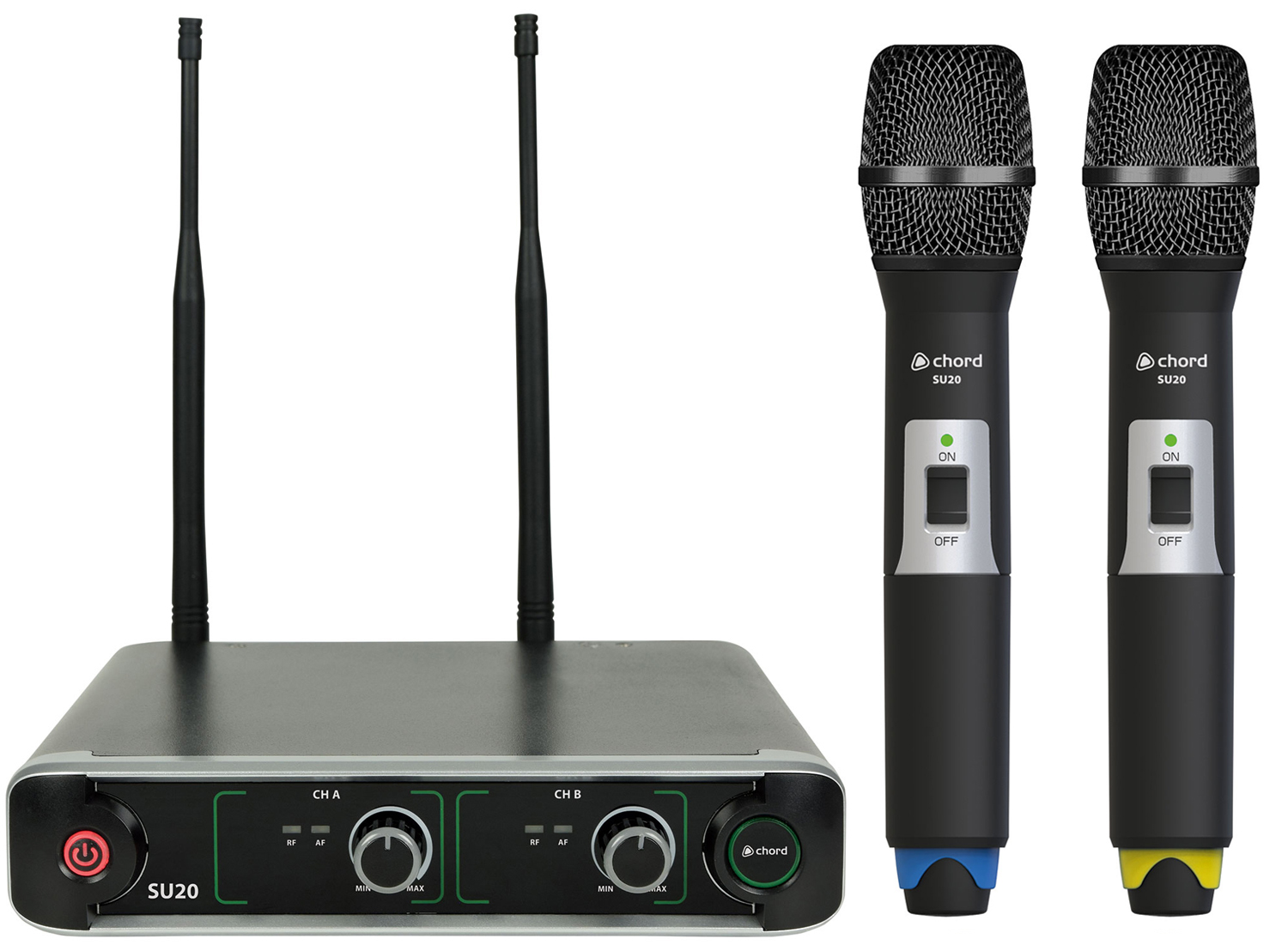

Dual UHF wireless microphone system with a compact receiver, supplied with hardware for mounting 1 or 2 units into a 1U 19" rack space. Detachable antennas are provided for rear or front mounting as required. Each microphone is powered by 2 x AA batteries and colour coded for frequency (864.8MHz Blue + 863.1MHz Yellow). Output is provided individually on balanced XLR connectors or mixed to a single 6.3mm jack socket. Providing all the functionality of a dual UHF system in a compact half-rack format

• Up to 2 sets (4 microphones) can be used together
• Available in handheld or beltpack versions with 2 carrier frequency option
• Front or rear mountable antennas
• Compact half-rack receiver
• Supplied with power adaptor and 4 x AA batteries
• Range 60m
• Microphone : polar pattern
• Cardioid (handheld, neckband or lavalier)
• Output connections 2 x balanced XLR, 1 x unbalanced 6.3mm jack
• Output impedance 2.2k Ohms
• Output level 400mV (balanced), 200mV (unbalanced)
• Frequency response 50Hz - 18kHz (±3dB)
• S/N ratio >80dB
• THD <0.5% @ 1kHz
