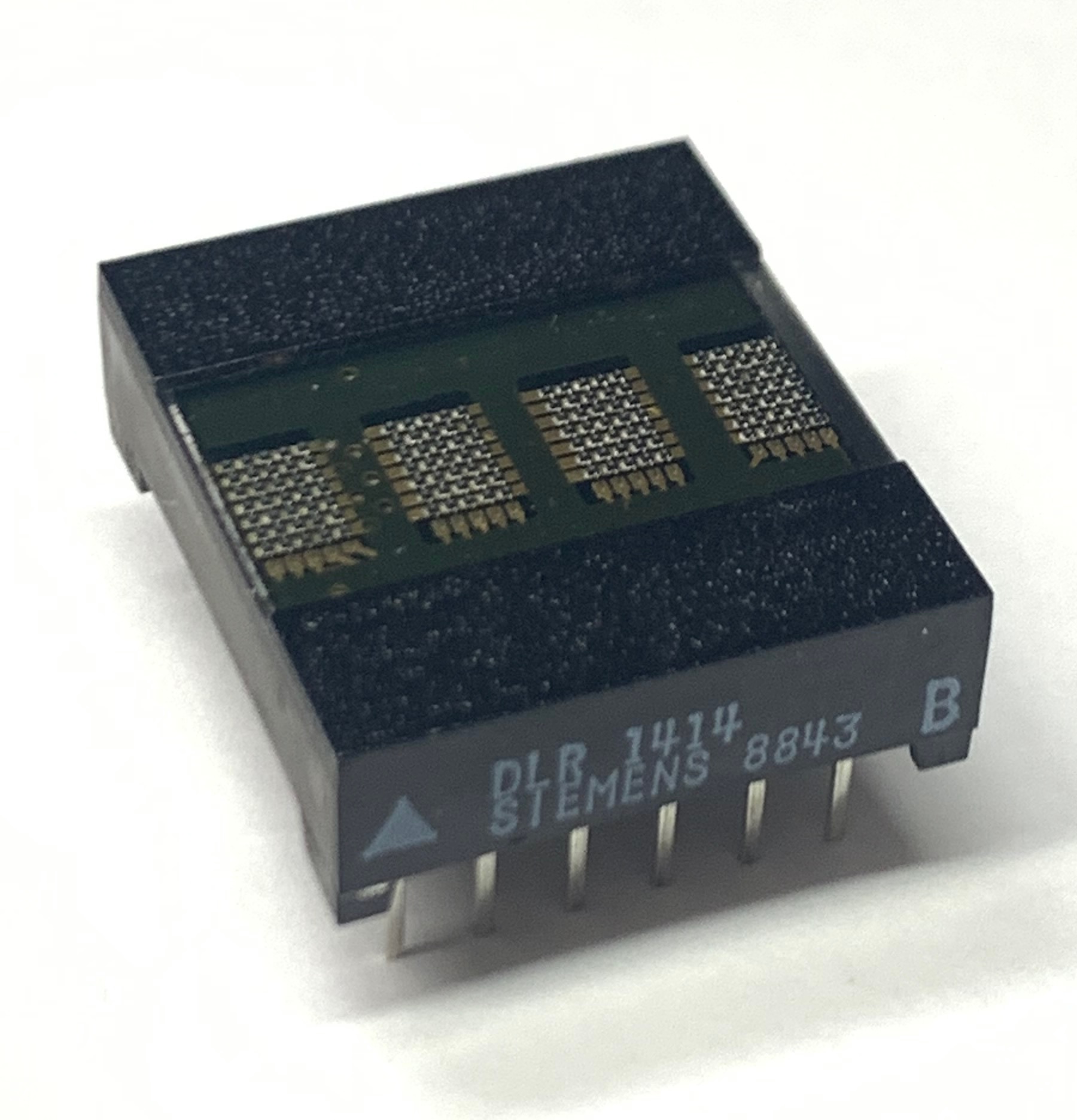

DLR1414 Four Digit 5x7 Dot Matrix Display Module
| Item Number | DLR1414 | |
| Our Price: |
£22.00
(inc VAT £26.40)
|
|
Vintage Siemens Four Digit 5x7 Dot Matrix Display Module
New old stock dot matrix display in DIL package.
FEATURES • Dot Matrix Replacement for DL1414T • 0.145" High, Dot Matrix Character • 128 Special ASCII Characters for English, German, Italian, Swedish, Danish, and Norwegian Languages • Wide Viewing Angle: X Axis ±50°, Y Axis ±75° • Close Vertical Row Spacing, 0.800" Centers • Fast Access Time, 110 ns at 25°C • Compact Size for Hand Held Equipment • Built- in Memory • Built-in Character Generator • Built-in Multiplex and LED Drive Circuitry • Direct Access to Each Digit Independently and Asynchronously • TTL Compatible, 5 Volt Power • Low Power Consumption, 20 mA per Character Typical • Intensity Coded for Display Uniformity • Extended Operating Temperature Range: –40°C to +85°C • End Stackable, 4-Character Package |
