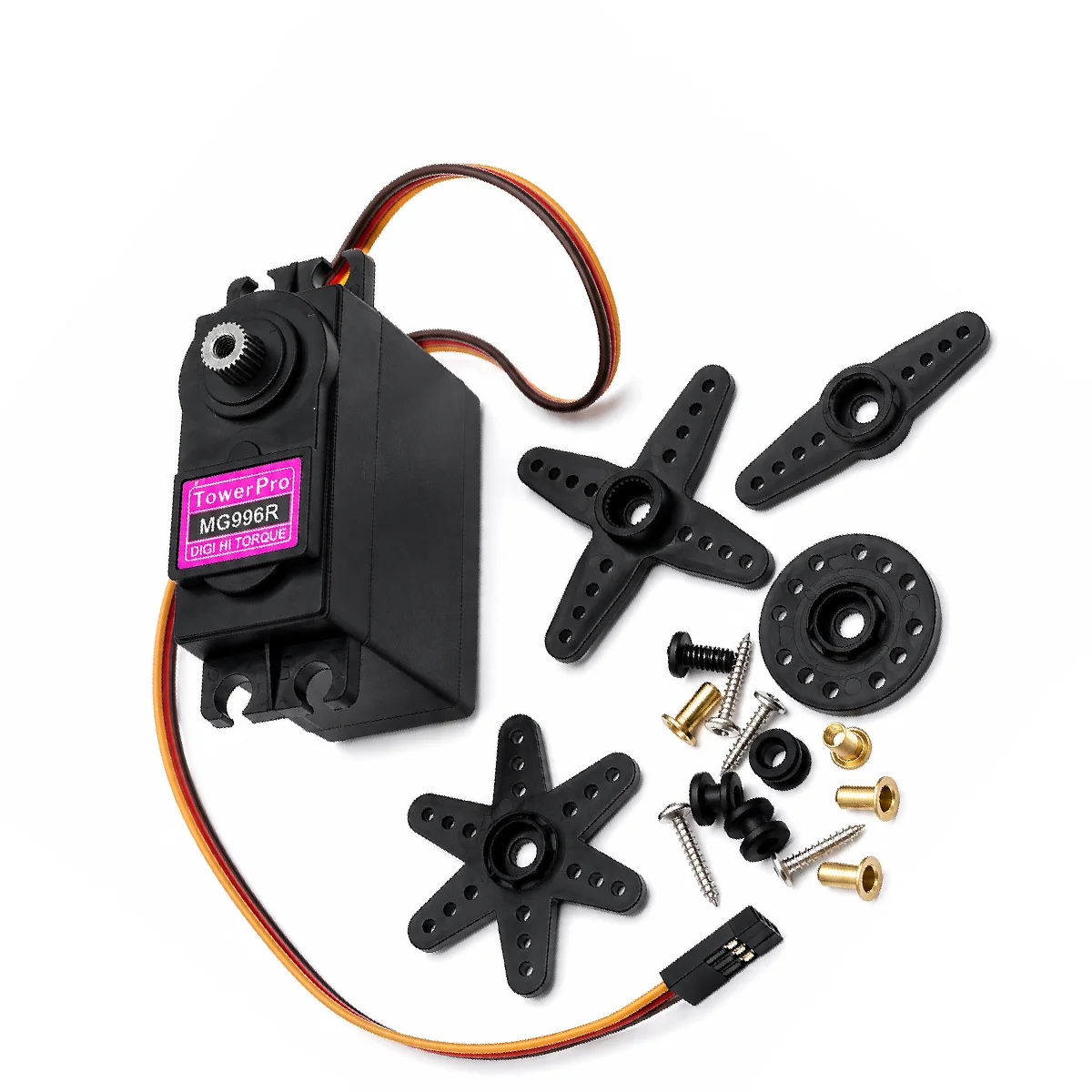

MG996R Micro Servo for Models, RC,  Arduino and other microcontroller projects

• High Torque Performance for RC Applications - The MG996R servo delivers strong torque ideal for demanding applications in 1/8 and 1/10 scale RC cars, helicopters, boats, and robots. Its robust output ensures reliable operation under heavy loads.
• Digital Servo with Metal Gear Construction - Equipped with a metal gear, this digital servo offers enhanced durability and resistance to wear. The metal gear improves performance and longevity compared to plastic alternatives.
• Optimized Voltage Range: 4.8V to 6.0V - Designed to operate efficiently within a 4.8V to 6.0V voltage range, this servo ensures stable performance when used with compatible power sources such as standard RC battery packs.
• Compatible with Futaba and JR Systems - This servo is engineered for seamless integration with popular RC systems including Futaba and JR receivers, making it a versatile choice for hobbyists using these brands.
• Universal Use with Arduino & other microcontrollers - Fully compatible with Arduino UNO and other microcontroller platforms, the MG996R is ideal for robotics projects requiring precise control and reliable movement.

Specification:

Dimension : 40mm x 19mm x 43mm
Weight : 56g
Operating Speed : 0.17sec / 60 degrees (4.8V no load)
Operating Speed : 0.13sec / 60 degrees (6.0V no load)
Stall Torque : 13 kg-cm (180.5 oz-in) at 4.8V
Stall Torque : 15 kg-cm (208.3 oz-in) at 6V
Operation Voltage : 4.8 - 7.2Volts
Gear Type: All Metal Gears
