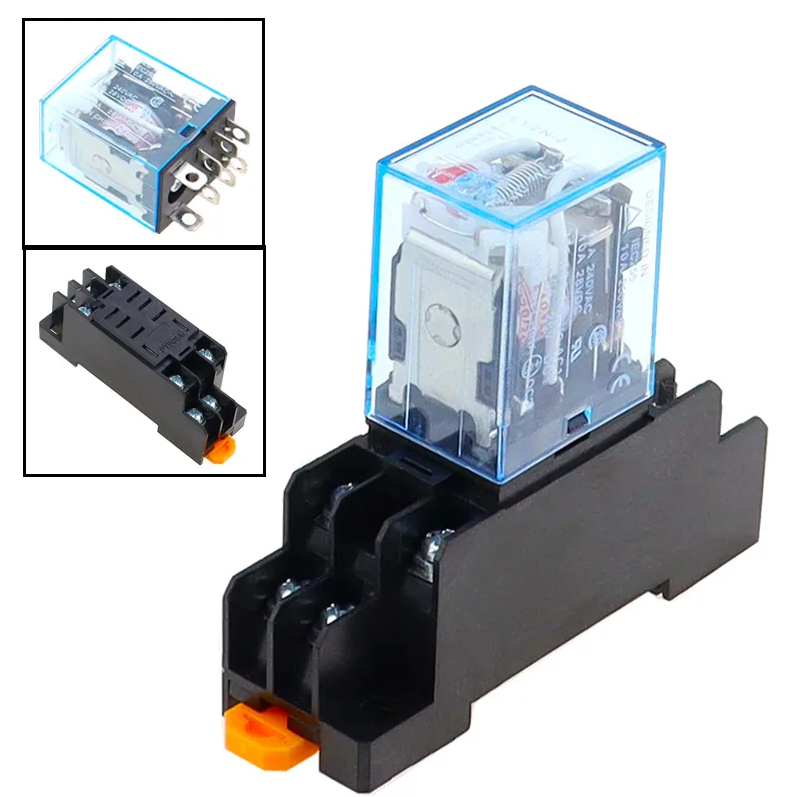

Power Relay DPDT 12VDC 10Amps with Din Rail Socket base

Item Number RBX12
Our Price: £4.00 (inc VAT £4.80)

DPDT Power Relay with 12VDC Coil, 10A @ 250VAC Contacts, supplied with easy to use Din Rail mounting base


  • Model: LY2NJ (8 pins)
  • Coil Voltage: 12VDC
  • Coil Resistance: 160 Ohms
  • Contact Structure: 8 pins 2 normally open 2 normally closed
  • Contact capacity: 10A 250VAC
  • Pull-in voltage: ≤80% (V)
  • Release voltage: DC: ≥10% (V), AC: ≥30%
  • Contact resistance: ≤50 (mΩ)
  • Insulation resistance: ≤100 (mΩ)
  • Dimensions: 27.5 × 21 × 35.3mm (relay)
  • Dimensions: 71.8 x 30.3 x 22.4 mm (Base)
  • Action time: 20ms or less
  • Reset Time: 20ms or less
  • Operating frequency:
  • Mechanical 18,000 cycles / hour
  • Electrical 18,000 times / hour
