4K HDMI Extender via CAT5/CAT6 up to 100 metres

Views: 570
Added:
Our Price

£62.00

(inc VAT £74.40)
Item Condition New
GTIN 5015972219126
Item Number HDNK2
Quantity

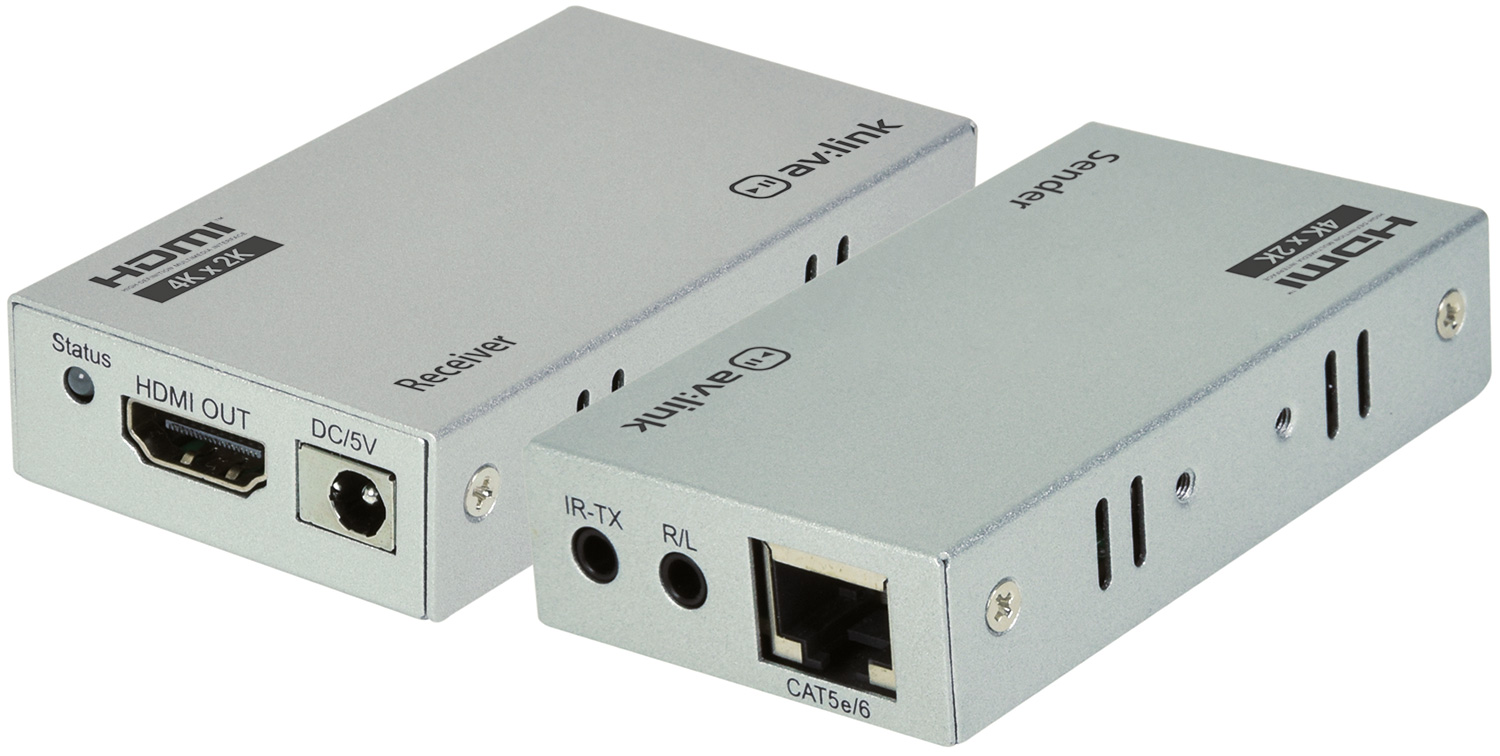

100m Range 4K HDMI Extender Over Ethernet Kit



An extender kit that allows 4K and FHD HDMI signals to be sent between devices at distances of up to 100m using a single shielded network cable. The Extender kit works using a single cat5e or cat6 (recommended) cable instead of HDMI cable to transmit high-definition signals over a long distance, vastly reducing your costs but without reducing your picture quality. The built in IR function enables simple control of transmission devices remotely and an audio extraction function allows connection to headphones, speakers and amplifiers using a 3.5mm audio cable (not supplied).



  • Easy transmission of 4K and FHD signals up to 100m using a single Ethernet cable
  • Simple plug and play connection and installation
  • Built in IR function enables control of transmission devices remotely
  • Audio extraction function for connection to speakers and amplifiers
  • Gold plated HDMI connectors for optimum signal transfer
  • HDCP2.2 Compliant
  • Supports DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD audio formats
  • Requires Cat5e/6 STP/FTP cable (not supplied)
  • Supplied with fixing brackets for rack mounting

Specifications:
HDMI version: 1.4a

Max. range: 100m

Video format: Up to 3840 x 2160 @ 30Hz

Audio format: Supports DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max. cable length: HDMI (input & output) 15m AWG26 standard cable

Max. bandwidth: 340MHz

Max. baud rate: 3x3.4Gbps

Max. working current: 350mA (TX) and 200mA (RX)

Power supply: 5Vdc, 1000mA

Dimensions: 82x45x18mm (each unit)

Weight: 120g (each unit)
*
*
*
