Motor Capacitors 450VAC Polypropylene

1.5µF 450VAC CBB61 Polypropylene Motor Run/Motor Start Capacitor With Mounting Lug

Radial leads (9cm long). 50-60Hz. Self extinguishing case and cover.

Tolerance ± 5%

Dimensions 37.5 x 14 x 24.5mm (exc. mounting lug)

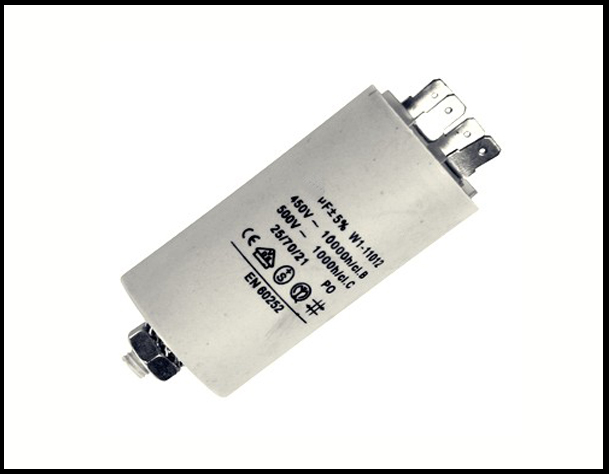

1.5uF 450VAC Polypropylene Motor Run/Motor Start Capacitor

6.3mm Lucar tags & Stud Mount. 50-60Hz. Self extinguishing case and cover.

Tolerance ± 5%

Dimensions 30 x 57mm

1µF 450VAC CBB61 Polypropylene Motor Run/Motor Start Capacitor With Mounting Lug

Radial leads (9cm long). 50-60Hz. Self extinguishing case and cover.

Tolerance ± 5%

Dimensions 37.5 x 14 x 24.5mm (exc. mounting lug)

1uF 450VAC Polypropylene Motor Run Capacitor

6.3mm Lucar tags & Stud Mount. 50-60Hz. Self extinguishing case and cover.

Tolerance 5%

Dimensions 30 x 57mm

2.5µF 450VAC CBB61 Polypropylene Motor Run/Motor Start Capacitor With Mounting Lug

Radial leads (9cm long). 50-60Hz. Self extinguishing case and cover.

Tolerance ± 5%

Dimensions 43 x 18 x 31mm (exc. mounting lug)

2.5uF 450VAC Polypropylene Motor Run/Motor Start Capacitor

6.3mm Lucar tags & Stud Mount. 50-60Hz. Self extinguishing case and cover.

Tolerance ± 5%

Dimensions 30 x 57mm

2µF 450VAC CBB61 Polypropylene Motor Run/Motor Start Capacitor With Mounting Lug

Radial leads (9cm long). 50-60Hz. Self extinguishing case and cover.

Tolerance ± 5%

Dimensions 43 x 18 x 31mm (exc. mounting lug)

3.5µF 450VAC CBB61 Polypropylene Motor Run/Motor Start Capacitor With Mounting Lug

Radial leads (9cm long). 50-60Hz. Self extinguishing case and cover.

Tolerance ± 5%

Dimensions 43 x 18 x 31mm (exc. mounting lug)

3uF 450VAC Polypropylene Motor Run/Motor Start Capacitor

6.3mm Lucar tags & Stud Mount. 50-60Hz. Self extinguishing case and cover.

Tolerance ± 5%

Dimensions 30 x 57mm

4.5µF 450VAC CBB61 Polypropylene Motor Run/Motor Start Capacitor With Mounting Lug

4.5uF 450VAC Polypropylene Motor Run/Motor Start Capacitor

6uF 450VAC Polypropylene Motor Run/Motor Start Capacitor

6.3mm Lucar tags & Stud Mount. 50-60Hz. Self extinguishing case and cover.

Tolerance ± 5%

Dimensions 30 x 57mm

8uF 450VAC Polypropylene Motor Run/Motor Start Capacitor

6.3mm Lucar tags & Stud Mount. 50-60Hz. Self extinguishing case and cover.

Tolerance ± 5%

Dimensions 35 x 66mm

10uF 450VAC Polypropylene Motor Run/Motor Start Capacitor

6.3mm Lucar tags & Stud Mount. 50-60Hz. Self extinguishing case and cover.

Tolerance ± 5%

Dimensions 35 x 66mm

12uF 450VAC Polypropylene Motor Run/Motor Start Capacitor

6.3mm Lucar tags & Stud Mount. 50-60Hz. Self extinguishing case and cover.

Tolerance ± 5%

Dimensions 40 x 71mm

16uF 450VAC Polypropylene Motor Run/Motor Start Capacitor

6.3mm Lucar tags & Stud Mount. 50-60Hz. Self extinguishing case and cover.

Tolerance ± 5%

Dimensions 40 x 71mm

20uF 450VAC Polypropylene Motor Run/Motor Start Capacitor

25uF 450VAC Polypropylene Motor Run/Motor Start Capacitor

6.3mm Lucar tags & Stud Mount. 50-60Hz. Self extinguishing case and cover.

Tolerance ± 5%

Dimensions 40 x 96mm

30uF 450VAC Polypropylene Motor Run/Motor Start Capacitor

6.3mm Lucar tags & Stud Mount. 50-60Hz. Self extinguishing case and cover.

Tolerance ± 5%

Dimensions 45 x 96mm

40uF 450VAC Polypropylene Motor Run/Motor Start Capacitor

6.3mm Lucar tags & Stud Mount. 50-60Hz. Self extinguishing case and cover.

Tolerance ± 5%

Dimensions 50 x 110mm

50uF 450VAC Polypropylene Motor Run/Motor Start Capacitor

6.3mm Lucar tags & Stud Mount. 50-60Hz. Self extinguishing case and cover.

Tolerance ± 5%

Dimensions 50 x 107mm

60uF 450VAC Polypropylene Motor Run/Motor Start Capacitor

6.3mm Lucar tags & Stud Mount. 50-60Hz. Self extinguishing case and cover.

Tolerance ± 5%

Dimensions 50 x 119mm

100uF 450VAC Polypropylene Motor Run/Motor Start Capacitor

6.3mm Lucar tags & Stud Mount. 50-60Hz. Self extinguishing case and cover

Tolerance ± 10%

Dimensions 65 x 120mm
