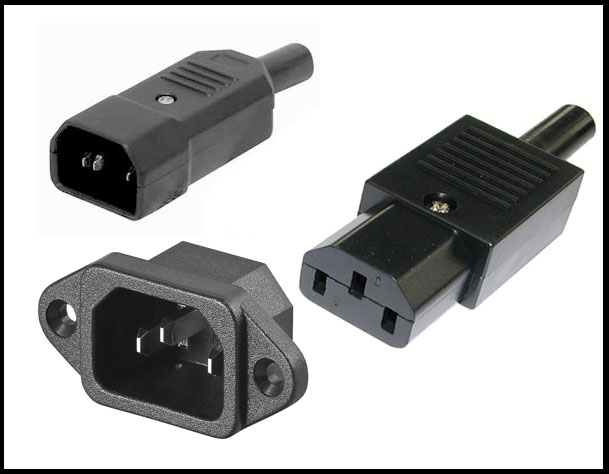

Mains Connectors (IEC Euro)

 C8 Figure 8 type Panel/Chassis 2 pin Male.

220-250VAC 2.5A. Fit C7 line Socket (eg our RL813 Lead)

High Quality Euro Mains 3 pin Male Chassis Plug Inlet with Fuse Holder rated at 10A @ 250V

Fits IEC C13 Mains Line Socket (EULS)

IEC C14 Euro Mains 3 pin Shrouded Line Plug  (Male) Rewireable. 250VA 10A.

With Rubber Strain Relief - Accepts cables up to 8mm

Conforms to all British & European Standards

Connects to C13 Female (EULS)

IEC Rewireable Euro Mains 3 pin C15 Line Socket (Female)

For cables up to 7mm dia.240VAC 10A Conforms to BS 4491

High Quality Euro Mains 3 pin Male Chassis Plug Inlet

Fits IEC C13 Mains Line Socket (EULS)

IEC Rewireable Euro Mains 3 pin C13 Line Socket (Female)

For cables up to 8mm dia.240VAC 6A Conforms to British Standards

IEC Rewireable Right Angled Euro Mains 3 pin C13 Line Socket (Female) Kautt & Bux

240VAC 6A Conforms to British Standards

Euro Mains 3 pin Shrouded Female Chassis Socket

Powercon NAC3FCA Blue 20 Amp 250VAC Power INPUT Connector

With Cable connector, quick lock with securing lever, A-type for power-in, screw terminal

Powercon NAC3FCB Grey & Blue 20 Amp 250VAC Power OUT Connector.

With Cable connector, quick lock with securing lever, A-type for power-in, screw terminals

Powercon NAC3FXW Yellow 16 Amp 250VAC Waterproof Power Line Female Connector

DISCONTINUED - REPACED BY NAC3FXWTOP

Powercon NAC3FXW-TOP 16 Amp 250VAC Waterproof Power Line Female Connector

The powerCON TRUE1 is a locking waterproof 16/20 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Powercon NAC3MPA Blue 20 Amp 250VAC Power INPUT Panel Receptacle Connector.

Powercon NAC3MPB Grey & Blue 20 Amp 250VAC Power OUTPUT Panel Recepticle Connector. Mates with NAC3FCB

Powercon NAC3MPX Yellow 20 Amp 250VAC Power Male Panel Recepticle Connector.

Male chassis connector, power-in, 1/4'' flat spade terminals. The powerCON TRUE1 is a locking 16 A (USA: 20 A) true mains connector. It replaces appliance couplers wherever a very rugged solution is required.

• True mains connector with breaking capacity (CBC)
• Lockable 16 A (USA: 20 A) single phase connector
• Easy and reliable twist lock system

High Quality Rewireable Euro Mains 3 pin Male Chassis Plug Inlet rated at 6A @ 250V



Fits IEC C13 Mains Line Socket (EULS)
