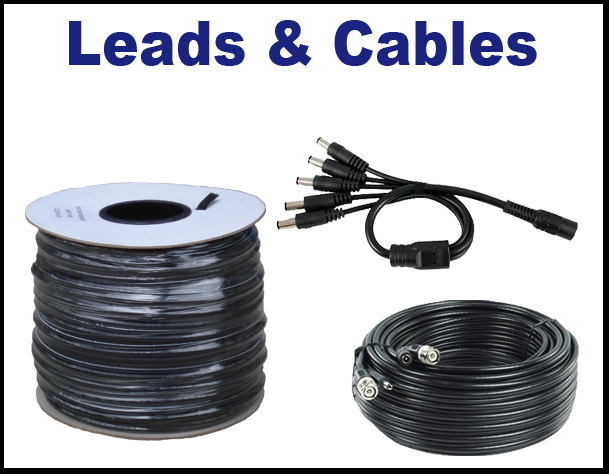

CCTV Leads & Cables

High Quality BNC Plug  to BNC Plug Lead 1M Long

High Quality Plugs on RG59U 75 ohm Coaxial Cable

High Quality BNC Plug  to BNC Plug Lead 2M Long

High Quality Plugs on RG59U 75 ohm Coaxial Cable

CAT6/CAT5E U/UTP High Quality Patch Network Cable. RJ45 connectors on each end. 250mm long

• 10 Gigabit (10/100/1000/10000 Mbit) Network Cable.
• LAN/network cable to connect network RJ45 connectors
• Gold plated Contacts
• Length indication on the slimline strain relief
• Latch protection
• Pair-sequence acc. to EIA/TIA 568B
• Suitable for Gigabit (10/100/1000 Mbit) network

High Quality BNC Plug  to BNC Plug Lead 5M Long

High Quality Plugs on RG59U 75 ohm Coaxial Cable

CAT5E High Quality Network Cable. RJ45 connector on each end. 50 metres long

CAT/CAT5E U/UTP High Quality Shielded Patch Network Cable. RJ45 connectors on each end. 500mm long

• 10 Gigabit (10/100/1000/10000 Mbit) Network Cable.
• LAN/network cable to connect network RJ45 connectors
• Gold plated PINs
• Length indication on the slimline strain relief
• Latch protection
• Pair-sequence acc. to EIA/TIA 568B
• Suitable for Gigabit (10/100/1000 Mbit) network

Cat5e U/UTP Low Smoke, Zero Halogen Network Cable in 305 metre dispenser

Cat5e oxygen free copper twisted pair data cable with low smoke zero halogen sheath. Supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.

CAT5E Pure Oxygen Free Copper U/UTP High Quality Data Network Cable

Cat6e U/UTP Outdoor Pure Oxygen  Free Copper OFC Network Cable

• Oxygen free solid copper conductor
• LDPE sheath and UV resistant properties make this cable ideal for outdoor installations
• Supplied in an easy-pull dispensing box and marked at 1m intervals
• Passes Cat6 fluke test 100m at 250MHz
• Complies to TIA/EIA-568 Cat6 standard

Cat6e U/UTP Outdoor Pure Oxygen  Free Copper OFC Network Cable

• Oxygen free solid copper conductor
• LDPE sheath and UV resistant properties make this cable ideal for outdoor installations
• Supplied in an easy-pull dispensing box and marked at 1m intervals
• Passes Cat6 fluke test 100m at 250MHz
• Complies to TIA/EIA-568 Cat6 standard

CAT6 U/UTP LOW SMOKE, ZERO HALOGEN, OXYGEN-FREE COPPER NETWORK CABLE -  PER 305 METRE DISPENSER

CAT6A S/FTP Low Smoke, Zero Halogen Oxygen Free Copper (OFC) Data Network Cable in 305m Reel

Very High Quality Copper

CAT6A oxygen free copper twisted pair data cable with low smoke zero halogen sheath and individual pair aluminium foil screen. Supplied on a wooden drum reel and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.
Low smoke zero halogen sheath material compliant to RoHS minimises the risk of thick black smoke and poisonous fumes in the event of a fire

AWG 23 oxygen free solid copper conductor
Supplied on a sturdy wooden drum reel
Passes Cat6a fluke test 100m at 500MHz
Complies to TIA/EIA-568 Cat6a standard

Specs
Conductor - Solid OFC
Strands - 8 x 1/0.565mmØ ±2%
Conductor CSA - 8 x 0.251mm²
Cable diameter - 7.5mmØ
Screen - Aluminium foil
Insulation - PE 0.385mm thickness
Sheath - LSZH 0.55mm thickness
Capacitance - 6.6nF/100m
DC resistance @ 20°C - <9.38 Ohms/100m
Impedance (1 to 250MHz) - 100±15 Ohms
Impedance (250 to 500MHz) - 100±22 Ohms
Return loss - >25dB @100m
Attenuation - <45.3dB @100m
NEXT - >74.3dB
PSNEXT - >72.3dB
ELFEXT - >13.8dB
PSELFEXT - >10.8dB
Phase delay - <570ns
Cable colour - Lilac
Length - 305m
Weight - 17.4kg

CAT6A U/FTP Low Smoke, Zero Halogen Oxygen Free Copper (OFC) Data Network Cable in 305m Dispenser Box

Cat5e U/UTP Outdoor Pure Oxygen-Free Copper Network Cable

Cat5e oxygen free copper twisted pair data cable with LDPE sheath. Supplied in dispensing box and marked at 1 metre intervals. This cable is designed for high speed data transmission such as Gigabit Ethernet applications.

High Quality VGA Lead. 15pin Male - Male, Used to connect a PC/Laptop to a monitor or Flat Screen CCTV Monitor, TV etc 2m Long

High Quality VGA Lead. 15pin Male - Male, Used to connect a PC/Laptop to a monitor or Flat Screen CCTV Monitor, TV etc 3m Long

High Quality VGA Lead. 15pin Male - Male, Used to connect a PC/Laptop to a monitor or Flat Screen CCTV Monitor, TV etc. 5 Metres Long

DC Power Lead. 2.1 X 5.5mm Line Socket to insulated wires, 200mm Long

High End VGA Monitor Lead with Anti-interference Ferrite rings and double screened cable. 15pin Male to 15pin Male High Density Plugs. Connnects Computer (PC or Laptop) amongst other things to a monitor or Flat Screen Plasma/LCD TV. 10m Long

DC Power Lead with  2.1 X 5.5mm plug to Insulated Solderable Wires. 200mm long.

10 Metre BNC Male to BNC Male Plus DC Male to DC Socket

High Quality RG59 Coaxial Lead with Power wires . BNC Plug & DC Plug one end and BNC Plug & DC Socket at the other end
