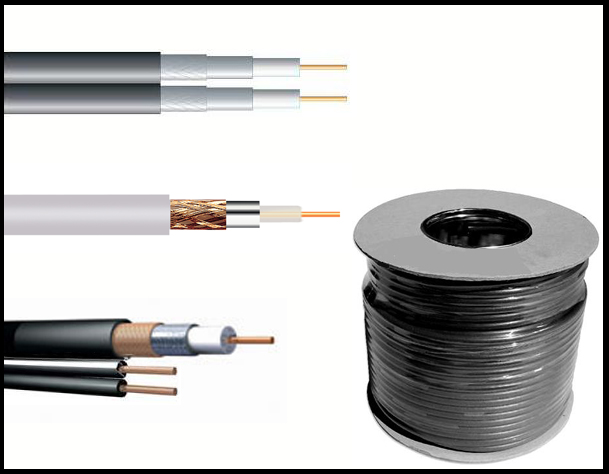

White RG6 Foam Filled Coaxial Cable for TV & Satellite 100 Metre Drum
ZR41H
White RG6 Foam Filled Coaxial Cable for TV & Satellite 100 Metre Drum
RG6 75 Ohms Foam Filled Coaxial Cable - Aluminium Braid
75 Ohms RG6 coaxial cable constructed of solid copper clad steel conductor, foam filled polyethylene dielectric, aluminium foil screen, aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for digital, satellite and cable TV signal transmission.
Also availble in shorter cuts. Please go to ZR41
Solid CCS conductor
Foam filled PE dielectric
Binded aluminium screen
Aluminium braid
Supplied in 100m reel with metric cut markers
Screen Aluminium / PET foil
Dielectric 4.6mmØ foam PE
Cable diameter 6.6mmØ
Impedance 75 Ohms
Capacitance 54pF/m
Velocity factor 83%
Return loss 5-400MHz 24dB min./100m
Return loss 450-1000MHz 20dB min./100m
Return loss 1000-2150MHz 16dB min./100m
Attenuation @ 5MHz 2.8dB max./100m
Attenuation @ 50MHz 5.1dB max./100m
Attenuation @ 100MHz 6.9dB max./100m
Attenuation @ 200MHz 10.1dB max./100m
Attenuation @ 400MHz 14.9dB max./100m
Attenuation @ 860MHz 20.1dB max./100m
Attenuation @ 1000MHz 22.2dB max./100m
Attenuation @ 1750MHz 29.6dB max./100m
Attenuation @ 2150MHz 33.3dB max./100m
|
£24.50
(inc VAT £29.40)
White RG6 Foam Filled Coaxial Cable for TV & Satellite per Metre
ZR41
|
White RG6 Foam Filled Coaxial Cable for TV & Satellite per Metre, Max length 50M
RG6 75 Ohms Foam Filled Coaxial Cable - Aluminium Braid
75 Ohms RG6 coaxial cable constructed of solid copper clad steel conductor, foam filled polyethylene dielectric, aluminium foil screen, aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for digital, satellite and cable TV signal transmission.
For complete 100M Drums please go to ZR41H
Solid CCS conductor
Foam filled PE dielectric
Binded aluminium screen
Aluminium braid
Supplied in 100m reel with metric cut markers
Screen Aluminium / PET foil
Dielectric 4.6mmØ foam PE
Cable diameter 6.6mmØ
Impedance 75 Ohms
Capacitance 54pF/m
Velocity factor 83%
Return loss 5-400MHz 24dB min./100m
Return loss 450-1000MHz 20dB min./100m
Return loss 1000-2150MHz 16dB min./100m
Attenuation @ 5MHz 2.8dB max./100m
Attenuation @ 50MHz 5.1dB max./100m
Attenuation @ 100MHz 6.9dB max./100m
Attenuation @ 200MHz 10.1dB max./100m
Attenuation @ 400MHz 14.9dB max./100m
Attenuation @ 860MHz 20.1dB max./100m
Attenuation @ 1000MHz 22.2dB max./100m
Attenuation @ 1750MHz 29.6dB max./100m
Attenuation @ 2150MHz 33.3dB max./100m
|
£0.75
(inc VAT £0.90)
Black RG6 Foam Filled Coaxial Cable for TV & Satellite 100 Metre Drum
ZR61H
Black RG6 Foam Filled Coaxial Cable for TV & Satellite 100 Metre DrumRG6 75 ohms Filled Coaxial Cable - Copper Braid
75 Ohms RG6 coaxial cable constructed of solid copper clad steel conductor, PET dielectric, aluminium foil screen, copper braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for digital, satellite and cable TV signal transmissio
RG6 75 Ohms Foam Filled Coaxial Cable - Aluminium Braid
75 Ohms RG6 coaxial cable constructed of solid copper clad steel conductor, foam filled polyethylene dielectric, aluminium foil screen, aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for digital, satellite and cable TV signal transmission.
Also available in shorter cuts. See ZR61
Solid CCS conductor
Foam filled PE dielectric
Binded aluminium screen
Aluminium braid
Supplied in 100m reel with metric cut markers
Screen Aluminium / PET foil
Dielectric 4.6mm foam PE
Cable diameter 6.6mm
Impedance 75 ohms
Capacitance 54pF/m
Velocity factor 83 percent
Return loss 5-400MHz 24dB min./100m
Return loss 450-1000MHz 20dB min./100m
Return loss 1000-2150MHz 16dB min./100m
Attenuation @ 5MHz 2.8dB max./100m
Attenuation @ 50MHz 5.1dB max./100m
Attenuation @ 100MHz 6.9dB max./100m
Attenuation @ 200MHz 10.1dB max./100m
Attenuation @ 400MHz 14.9dB max./100m
Attenuation @ 860MHz 20.1dB max./100m
Attenuation @ 1000MHz 22.2dB max./100m
Attenuation @ 1750MHz 29.6dB max./100m
Attenuation @ 2150MHz 33.3dB max./100m
Length 100m
Weight 3.8kg
|
£24.50
(inc VAT £29.40)
Black RG6 Foam Filled Coaxial Cable for TV & Satellite per Metre
ZR61
|
White RG6 Polyethylene Filled Coaxial Cable for TV & Satellite per metre. Max length 50m
RG6 75 ohms Filled Coaxial Cable - Copper Braid
75 Ohms RG6 coaxial cable constructed of solid copper clad steel conductor, PET dielectric, aluminium foil screen, copper braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for digital, satellite and cable TV signal transmission.
For complete 100M Drums please go to ZR61H
Solid CCS conductor
PE dielectric
Binded aluminium screen
Aluminium braid
Supplied in 100m reel with metric cut markers
Screen Aluminium / PET foil
Dielectric 4.6mm foam PE
Cable diameter 6.6mm
Impedance 75 Ohms
Capacitance 54pF/m
Velocity factor 83 perecent
Return loss 5-400MHz 24dB min./100m
Return loss 450-1000MHz 20dB min./100m
Return loss 1000-2150MHz 16dB min./100m
Attenuation @ 5MHz 2.8dB max./100m
Attenuation @ 50MHz 5.1dB max./100m
Attenuation @ 100MHz 6.9dB max./100m
Attenuation @ 200MHz 10.1dB max./100m
Attenuation @ 400MHz 14.9dB max./100m
Attenuation @ 860MHz 20.1dB max./100m
Attenuation @ 1000MHz 22.2dB max./100m
Attenuation @ 1750MHz 29.6dB max./100m
Attenuation @ 2150MHz 33.3dB max./100m
|
£0.75
(inc VAT £0.90)
Twin Satellite Coaxial Cable in Black. Sold by Metre Multiples
ZRT6
Twin RG6 75 Ohms Foam Filled Coaxial Cable - Aluminium Braid per metreAlso available in 100 metre drums: please go to ZRT6H
75 Ohms twin RG6 coaxial cable constructed of solid copper clad steel conductor, foam filled polyethylene dielectric, aluminium foil screen, aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for satellite dish installation with dual or quad LNB.
Solid CCS conductor
Foam filled PE dielectric
Auminium screen
Aluminium braid
Supplied iwith metric cut markers
Specification:
CSA 2 x 0.79mm²
Conductor diameter 2 x 1mm
Conductor material Solid CCS
Braid 2 x 64/0.12mm
Braid material Aluminium
Screen Aluminium / PET foil
Dielectric 4.6mm foam PE
Cable : diameter 2 x 6.6mm
Impedance 75 Ohms
Capacitance 54pF/m
Velocity factor 83%
Return loss 5-400MHz 24dB min./100m
Return loss 450-1000MHz 20dB min./100m
Return loss 1000-2150MHz 16dB min./100m
Attenuation @ 5MHz 2.8dB max./100m
Attenuation @ 50MHz 5.1dB max./100m
Attenuation @ 100MHz 6.9dB max./100m
Attenuation @ 200MHz 10.1dB max./100m
Attenuation @ 400MHz 14.9dB max./100m
Attenuation @ 860MHz 20.1dB max./100m
Attenuation @ 1000MHz 22.2dB max./100m
Attenuation @ 1750MHz 29.6dB max./100m
Attenuation @ 2150MHz 33.3dB max./100m
|
£1.50
(inc VAT £1.80)
Twin Satellite Coaxial Cable in Black. 100 Metre Drum
ZRT6H
Twin RG6 75 Ohms Foam Filled Coaxial Cable - Aluminium Braid 100 metre drum
75 Ohms twin RG6 coaxial cable constructed of solid copper clad steel conductor, foam filled polyethylene dielectric, aluminium foil screen, aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for satellite dish installation with dual or quad LNB.
Also available in metre lengths: please go to ZRT6
Solid CCS conductor
Foam filled PE dielectric
Auminium screen
Aluminium braid
Supplied iwith metric cut markers
Specification:
CSA 2 x 0.79mm²
Conductor diameter 2 x 1mm
Conductor material Solid CCS
Braid 2 x 64/0.12mm
Braid material Aluminium
Screen Aluminium / PET foil
Dielectric 4.6mm foam PE
Cable : diameter 2 x 6.6mm
Impedance 75 Ohms
Capacitance 54pF/m
Velocity factor 83%
Return loss 5-400MHz 24dB min./100m
Return loss 450-1000MHz 20dB min./100m
Return loss 1000-2150MHz 16dB min./100m
Attenuation @ 5MHz 2.8dB max./100m
Attenuation @ 50MHz 5.1dB max./100m
Attenuation @ 100MHz 6.9dB max./100m
Attenuation @ 200MHz 10.1dB max./100m
Attenuation @ 400MHz 14.9dB max./100m
Attenuation @ 860MHz 20.1dB max./100m
Attenuation @ 1000MHz 22.2dB max./100m
Attenuation @ 1750MHz 29.6dB max./100m
Attenuation @ 2150MHz 33.3dB max./100m
|
£41.00
(inc VAT £49.20)
Black RG59U 75 ohm Coaxial Cable per Metre
ZR59
|
Black RG59U Cable per Metre. Max length 50M |
£0.75
(inc VAT £0.90)
Black RG59U 75 ohm Coaxial Cable 100 Metre Drum
ZR59H
|
Black RG59U Cable 100M Drum
|
£16.85
(inc VAT £20.22)
White 100 Metre Drum RG59U 75 ohm Coaxial Cable with power wires
ZR59WWH
|
White RG59U Cable with Power Wires 100M Drum 2 power wires, one with polarity stripe, are moulded on to the outer of this RG59U coaxial cable, for transmission of signal & power to CCTV cameras, recorders & ancillary equipment.
|
£42.50
(inc VAT £51.00)
Black RG59U 75 ohm Coaxial Cable with power wires per Metre
ZR59PW
|
Black RG59U Cable with Power Wires per Metre. Max length 50M 2 power wires, one with polarity stripe, are moulded on to the outer of this RG59U coaxial cable, for transmission of signal & power to CCTV cameras, recorders & ancillary equipment.
|
£1.75
(inc VAT £2.10)
250 Metres Black Metre Drum RG59U 75 ohm Coaxial Cable with power wires
ZR59PWT
|
Black RG59U Cable with Power Wires 250M Drum |
£118.75
£106.25
(inc VAT £127.50) 11% Off
500 Metre Drum RG59U 75 ohm Coaxial Cable with power wires in black
ZR59PWD
RG59U Cable with Power Wires 500M Drum
|
£212.50
(inc VAT £255.00)
Black 100 Metre Drum RG59U 75 ohm Coaxial Cable with power wires
ZR59PWH
|
High Quality Black RG59U Cable with Power Wires 100M Drum 2 power wires, one with polarity stripe, are moulded on to the outer of this RG59U coaxial cable, for transmission of signal & power to CCTV cameras, recorders & ancillary equipment.
|
£42.50
(inc VAT £51.00)
RG213/U 10.4mm RF Transmission Coaxial Cable in Black per Metre
ZR67
|
RG213/U 10.4mm Coaxial Cable for RF Transmission per Metre. Max length 50M |
£3.00
(inc VAT £3.60)
RG213/U 10.4mm RF Transmission Black Coaxial Cable 100 Metre Wooden Drum
ZR67H
|
100 Metres RG213/U 10.4mm Coaxial Cable for RF Transmission
|
£195.00
(inc VAT £234.00)
RG213/U 10.4mm RF Transmission Black Coaxial Cable 50 Metre Wooden Drum
ZR67F
|
50 Metres RG213/U 10.4mm Coaxial Cable for RF Transmission
|
