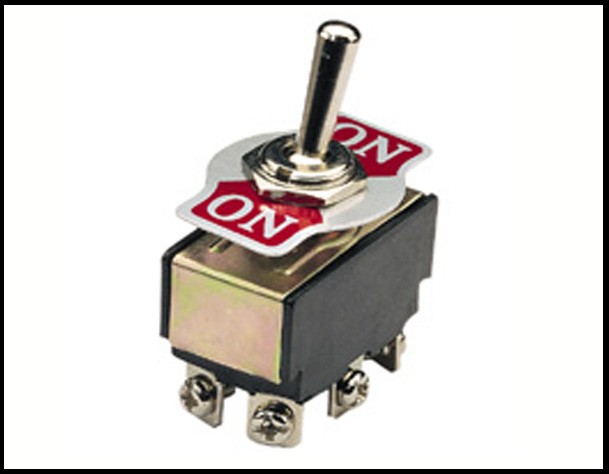

Toggle Switches

Quality Miniature Toggle Switch SPDT Single Pole Changeover with removable Red Dolly.

Max ratings: 250V 3A, 125V 6A

Metal toggle with red plastic dolly.Dimensions: 35 x 9.5 x 6.5mm

Toggle Switch Standard Size On/On DPDT Double Pole Changeover

Rated at 250VAC 1.5A.B ody Dims: L:28mm H:14mm W:18mm. 6 Solder terminals

Panel cutout 12mm

Rated 1.5A 250VAC

Contact resistance 50mΩ max.

Dielectric strength 1000VAC/1min

Toggle Switch Standard Size SPST On / Off

Rated at 250VAC 2A.Body Dims: L:25mm H:14mm W:14mm. 2 Solder Terminals

Panel cutout 12mm

Rated 1.5A 250VAC

Contact resistance 50mΩ max.

Dielectric strength 1000VAC/1min

Sub Miniature DPDT Double Pole Changeover Toggle Switch

125V 3A. 8mm L x 9mm W x 7mm H

Metal Lever

Sub Miniature Toggle Switch SPDT Single Pole Changeover

125V 3A. 8mm L x 5mm W x 7mm H

Metal Lever

High Quality Centre Off 4 Pole Double Throw (4PDT) Toggle Switch with Metal Dolly

Rated at 250VAC 16A 12mm cut-out/nut.

Contact Resistance: 100 milliohms max

Dielectric Strength: 1000V RMS (min)

Insulation Resistance: 100MΩ (min)

Mechanical Life: 50000 Cycles

Electrical Life: 10000 Cycles

High Quality Toggle Switch with Metal Dolly 4 Pole Double Throw (4PDT)

Rated at 250VAC 16A 12mm cut-out/nut.

Contact Resistance: 100 milliohms max

Dielectric Strength: 1000V RMS (min)

Insulation Resistance: 100MΩ (min)

Mechanical Life: 50000 Cycles

Electrical Life: 10000 Cycles

High Quality Changeover (DPDT) Toggle Switch with Metal Dolly.

Rated at 250VAC 16A 12mm cut-out/nut. Contact Resistance 100 milliohms max

Dims: Total Height (Toggle Tip to Tags Ends): 59mm, Width: 20mm. Length: 32mm

Dielectric Strength: 1000V RMS (min)

ROHS Compliant

High Quality Toggle Switch with Metal Dolly On/Off/On (DPDT Centre Off).

Rated at 250VAC 10A / 125VDC 15A 12.2mm cut-out/nut. Contact Resistance 50 milliohms max

Dims: Total Height (Toggle Tip to Tags Ends): 59mm, Width: 15.7mm. Length: 29.2mm

Accepts 6.3mm Crimp Terminals holes to enable soldering.

ROHS Compliant

High Quality Toggle Switch with Metal Dolly On/Off/On (DPDT Centre Off).

Rated at 250VAC 16A 12mm cut-out/nut. Contact Resistance 100 milliohms max

Dims: Total Height (Toggle Tip to Tags Ends): 59mm, Width: 20mm. Length: 32mm

Dielectric Strength: 1000V RMS (min)

ROHS Compliant

High Quality Changeover (SPDT) Toggle Switch with Metal Dolly.

Rated at 250VAC 16A 12mm cut-out/nut. Contact Resistance 100 milliohms max

Dims: Total Height (Toggle Tip to Tags Ends): 59mm, Width: 15mm. Length: 30mm

Dielectric Strength: 1000V RMS (min)

ROHS Compliant

Waterproof Rubber Cap for 12mm Toggle Switches

Fits on top of toggle switches with M12 shaft


Waterproof Rubber Cap for 6mm Toggle Switches

Fits on top of toggle switches with M6 shaft


Miniature Toggle Switch SPDT Single Pole Changeover. On/On

5A @ 125V, 3A @ 250V.

High quality switch with silver contacts

Needs 6mm cutout

Miniature Toggle Switch DPDT Double Pole Changeover 250V 3A. 36 x 14 x 14mm

High quality switch with silver contacts

M6 6mm Nut. Solder tabs.

Miniature Toggle Switch SPDT Single Pole Changeover Centre-off. On/Off/On

5A @ 125V, 3A @ 250V.

Needs 6mm cutout

Miniature Toggle Switch DPDT Centre-off On/Off/On

250V 3A.

32h x 13 x 12mm with M6 nut - 6mm cut-out

Miniature Toggle Switch. Biased to Centre off. (Springs back to centre-off position from either position when not held)

SPDT 5A 125VAC, 3A 250VAC. 36 x 14 x 9mm. Needs 6mm cutout

Miniature Toggle Switch DPDT Biased Centre-off (ie spring return to centre position) 125VDC 5A max. 33 x 13 x 12mm M6 Nut.

Miniature 4 Pole Toggle Switch 4P2W (4 pole changeover). ON-ON.

Dimensions: L22 x W12.6mm Body height 10.5mm. 6.35mm Bush.

Rating: 5A 120VAC/28VDC 2A 240VAC. Dielectric Strength: 1500V RMS

Miniature Toggle Switch DPDT Centre-off - Biased Momentary One Way. Latching the other way.

125VDC 5A max. 33 x 13 x 12mm M6 Nut.
