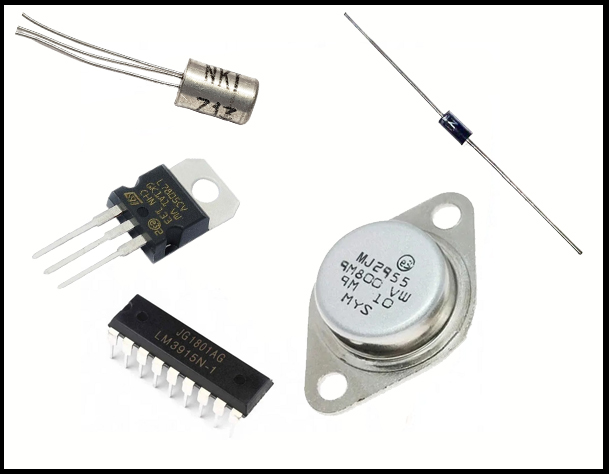

See Our Vast Range of Semiconductors

Browse Now

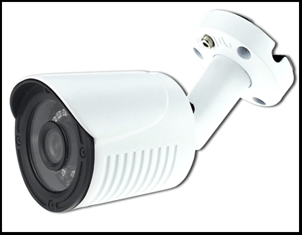

CCTV & Security

Crystal clear CCTV cameras

Shop Now

Pro Audio

Browse our Pro Audio Including Passive and Active Speaker Systems

Shop Now

Hobby Maker

Amazing Hobby Kits and Maker Parts Available

Shop Now
Quick View
180MHz Dual Channel Digital Phosphor Oscilloscope with Built-in Function Generator

180MHz Dual Channel Digital Phosphor Oscilloscope with Built-in Function Generator

DPOX180H

DPOX180H 180MHz Dual Channel Digital Phosphor Oscilloscope with Function Generator

The DPOX180H is a small but mighty portable digital phosphor oscilloscope (DPO) with a bandwidth of 180MHz and high sampling rate of 500MS/s. Fully featured with a 2.8" IPS digital fluorescent display, 3000mAh Li-ion batttery, 50000wfm/s waveform refresh rate and 20MHz DDS function generator. All the benefits of a modern digital storage oscilloscope combined with the added benefits of an analogue oscilloscope display.


Package Contents:

1 * DPOX180H Digital Phosphor Oscillograph
2 * Matching 200MHz Probe (1X & 10X)
1 * 5V2A Power Adapter
 1 * USB Data Line
 1 * User Manual (English and Chinese)

Specifications:

Number of channels 2
Analog bandwidth 180MHZ
Maximum sampling rate 500MSPS
Input coupling DC/AC
Rise time 2.5nS
Storage depth 120Kpts
Input impedance 1MΩ-18PF
Vertical sensitivity 5mV ~ 10V(1X)
Time base range 5nS ~ 50S
DC accuracy ±2%
Time accuracy ±0.01%
Measurement range 40mV ~ 80V(1X)
Digital phosphor technolog support
Color temperature display support
Zoom scaling time base support
20M hardware bandwidth limitation support
Adjustable automatic bandwidth limitation support
X-Y mode support
FFT support
Cursor measurement Frequency/Period/Amplitude
Trigger detection Digital trigger
Trigger mode Auto/Single/Normal
Trigger edge Rising/Falling
Roll mode support
Screenshot storage 90
Waveform storage 250 groups
Capture signal 500
Parameter measurement 12 kinds
Signal generator 14 standard function signals
Auto-adjustment support
Waveform manager support
Waveform output support
High-voltageburnout protection support
Screen size 2.8 inches
Screen resolution 320x240
Display technology IPS full view
Expansion interface USB transmission interface
Auto power-off 5minutes-2hours
Firmware upgrade support
Charging requirements 5V 2A
Battery capacityï 3000mAh
Standby time 3.5 hours at full charge
Dimensions 135mmx90mmx40mm

£150.00

(inc VAT £180.00)
Quantity
Quick View
Smart Portable Soldering Iron With Adjustable Temperature

Smart Portable Soldering Iron With Adjustable Temperature

SLT12

Smart Soldering Iron With Adjustable Temperature And USB-C Power Delivery

This portable soldering iron is a great choice for hobbyists and professionals alike. With its super fast heat up time you can be soldering from first turn on in under 10 seconds. This iron will out perform more expensive irons and even many soldering stations. As it uses USB-C power it is extremely portable and can even be powered from a power bank for use anywhere. It features a 0.87" OLED screen which displays the user-friendly interface. The high quality milled metal body is very durable and can withstand years of use.

Different tips are available for this iron, please click on the images bellow.

Package Contents:

1 x Smart Soldering Iron

1 x T12-I Tip

1 x User Manual

1 x Soldering Iron Stand with Sponge

Specifications:
Power: USB-C PD2.0/QC3.0 (5V-20V, 65W)
Temperature Range: 180-450°C ±2°C
Display: OLED Monochrome Display 0.87", 96x16 pixels
Tip: T12-I, 9.5mm length, 0.2mm Width
Body Dimensions: 185mm (length) x 17mm (diameter)
Body Weight: 60g



Replacement Tips

T12 Soldering Iron Tip T12-B
T12-B


T12 Soldering Iron Tip T12-K
T12-K

T12 Soldering Iron Tip T12-I
T12-I

T12 Soldering Iron Tip T12-2.4D
T12-2.4D

£32.00

(inc VAT £38.40)
Quantity
Quick View
10W Amplifier Kit for TDA2003A

10W Amplifier Kit for TDA2003A

TDA2003KIT

TDA2003A 10W Amplifier Kit

This kit uses a TDA2003 to create a small but powerful audio amplifier suitable for most uses. It works best with supply voltages between 8-18VDC and loads down to 2Ω.
Perfect for use with passive bookshelf speakers, or as a general purpose audio amplifier.

The following components are included in this kit:

  • Circuit Layout Diagram + Schematic x 1
  • Volume (20kΩ LOG) potentiometer x 1
  • 1000µF 16V Capacitor x 1
  • 470µF 25V Capacitor x 1
  • 100µF 25V Capacitor x 1

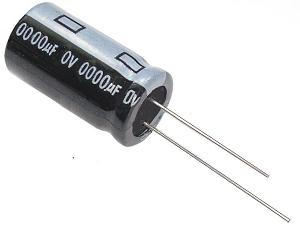

  • 10µF 25V Capacitor x 1
  • 100nF Boxpoly Capacitor x 2
  • 47nF Boxpoly Capacitor x 1
  • 2W 1Ω Resistor x 1
  • 2W 2.2Ω Resistor x 1
  • Metal Film 220Ω Resistor x 1
  • Metal Film 39Ω Resistor x 1
  • PCB Terminal Blocks x 2
  • PCB x 1
  • TDA2003A IC x 1


Technical Specifications:

Input Voltage: 8-18VDC
Output Power: 10W @ RL= 2Ω, 6W @ RL= 4Ω
THD: 0.18% @ RL= 2Ω, f = 1kHz
Efficiency: 65% @ RL = 2Ω, f = 1kHz
Power Dissipation @ Tcase = 90­°C: 20W
Frequency Response: 40-15000Hz





£8.00

(inc VAT £9.60)
Quantity
Quick View
4 Ceiling Speaker System with Bluetooth - 2 x 200W

4 Ceiling Speaker System with Bluetooth - 2 x 200W

SPK24C

4 Way Ceiling Speaker System - 2 x 200W



Fully featured, easy to install 4 speaker system with Bluetooth, media player, microphone and line audio input. Featuring 4 high quality, rubber surround ceiling speakers with ferrofluid-cooled adjustable silk dome tweeters for a high quality HiFi listening experience. These speakers have a high dispersion angle (155°), which helps distribuite sound over a large area without the need for additional speakers.

This package includes: 4 x Adastra C6D ceiling speakers,  1 x Adastra A2 Mixer-Amp and 100 metres of white speaker cable.

All our systems are bespoke; they are not pre-boxed kits; just phone 020 8452 0161 if you wish to change anything.

Features:

  • Easy to install

  • Built-in tone control allows you to tailor the sound to your taste and listening environment

  • Microphone, USB, SD, Bluetooth, AUX and Line inputs make it easy to connect to your sound source

  • USB and SD inputs can be controlled via the remote control

  • HiFi ceiling speakers provide excellent audio quality, unlike many other ceiling speakers

  • Input selector switch allows you to change the sound input without unplugging cables


Technical Specifications:

Amplifier:

  • Output power RMS @ 4Ω : 2 x 200W
  • Amplifier class: Class D
  • Microphone inputs: 2 x 6.3mm (1/4") mono jack
  • Line inputs: 4 x RCA sockets (Line 1 &2 ) + 2 x 6.3mm (1/4") mono jacks
  • Line input sensitivity: 0.775VRMS
  • AUX input: 3.5mm (1/8") stereo jack
  • AUX input sensitivity: 0.48VRMS
  • Bluetooth version: 2.3
  • Line output: 2 x RCA
  • Speaker outputs: 4 x 4mm binding posts
  • FM Antenna connection: F-type socket
  • THD + N: < 0.1%
  • Output controls: Source select, bass, treble, Ch1, Ch2
  • Input controls: Aux, Media, Line1, Line2, Mic1, Mic2, Talkover
  • Protection: Thermal, over-current, over-voltage, short-circuit
  • Dimensions: 482 x 260 x 88mm
  • Weight: 5.21kg
  • Fuse: F5A, 250V

Speakers:

  • Power Max.: 100W
  • Impedance: 8Ω
  • Sensitivity @ 1W/1m: 85dB(±2dB)
  • Cutout: 193mm dia.
  • Mounting depth: 79mm
  • Dimensions: 93 x 227mm
  • Frequency response: 60Hz - 20kHz

£285.00

(inc VAT £342.00)
Quantity
Quick View
Arduino Uno Revision 3 Development Board

Arduino Uno Revision 3 Development Board

AUR3

UNO R3 Arduino-compatible board with the ATMega328P, ATMega16U2 and CH340G serial converter

Since Arduino is an "Open Source" hardware as well as software; anyone can duplicate the Arduino Uno R3 boards exactly, even using original parts, this means we are able to supply this Arduino compatible board at a fraction of the cost of the original but still working identicaly to the original.

The UNO is the best board to get started with electronics and coding. If this is your first experience tinkering with the platform, the UNO is the most robust board you can start playing with. The UNO is the most used and documented board of the whole Arduino family.

Arduino Uno is a microcontroller board based on the ATmega328P. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a USB connection, a power jack, an ICSP header and a reset button. The development board has everything needed to support the microcontroller to help you create an endless amount of projects and if you are just starting then the worldwide Arduino community is full of ideas, guides and help to get you started or help you complete your project.

Supplied
1 x Arduino Compatible Uno R3 development board
1 x USB Cable


Arduino Quick Start Guide



Installing the Arduino IDE

  1. Go to arduino.cc/en/software and download the appropriate version for your system.
  2. Run the installation file (usually called arduino-1.xx.xx-windows.exe).
  3. Follow the on-screen instructions to complete the installation process.


Connecting the Arduino to a computer

  1. Connect the Arduino to your computer using the USB cable provided.
  2. Open the Arduino IDE and click on “Tools”. When prompted by windows firewall click allow.
  3. Move the cursor over “Board” and select your Arduino board from the list (e.g. “Arduino Uno”).
  4. Click on “Tools” again and move the cursor over “Port”. Now, select the USB port where the Arduino is plugged in. If you have multiple devices under “Ports” and you are unsure which one is the Arduino, try selecting one of the ports and then click on “Tools” and select “Get board info”. If the Arduino port is selected, a small window displaying the board information will appear, otherwise keep trying different ports until the window appears.
  5. To check if the Arduino is connected correctly, click on the “Upload” button at the top of the screen (button with arrow pointing to the right) and wait for the empty sketch to upload. If no errors come up, you’re all set up and ready to go!


Installing Arduino Libraries

Method 1

  1. Open the Arduino IDE and click on “Tools” at the top of the screen.
  2. Click on “Manage Libraries”.
  3. Type in the name of the library you wish to install (e.g. “CCS811”) and press enter.
  4. The Library Manager will now display a number of relevant libraries. Hover the cursor over the required library and click “Install”. When the installation has finished, close the Library Manager window.


Method 2

  1. Download the library you wish to install.
  2. Extract the folder from the zip file and paste it in the following location:

         Windows XP and above: C:\Users\%username%\Documents\Arduino\Libraries

         Mac: /Users/<username>/Documents/Arduino/libraries/

         Linux: /usr/share/arduino/libraries/ (you must delete the dashes in the folder name, if there are any)

  1. Restart the Arduino IDE.

£14.00

(inc VAT £16.80)
Quantity
