4 + 2 Port PoE Network Switch 10/100 Mbps

Views: 1175
Added:
Our Price

£45.00

(inc VAT £54.00)
Weight 0.70 Kg
Item Number NSW2020-6T-POE-IN-V2
Quantity

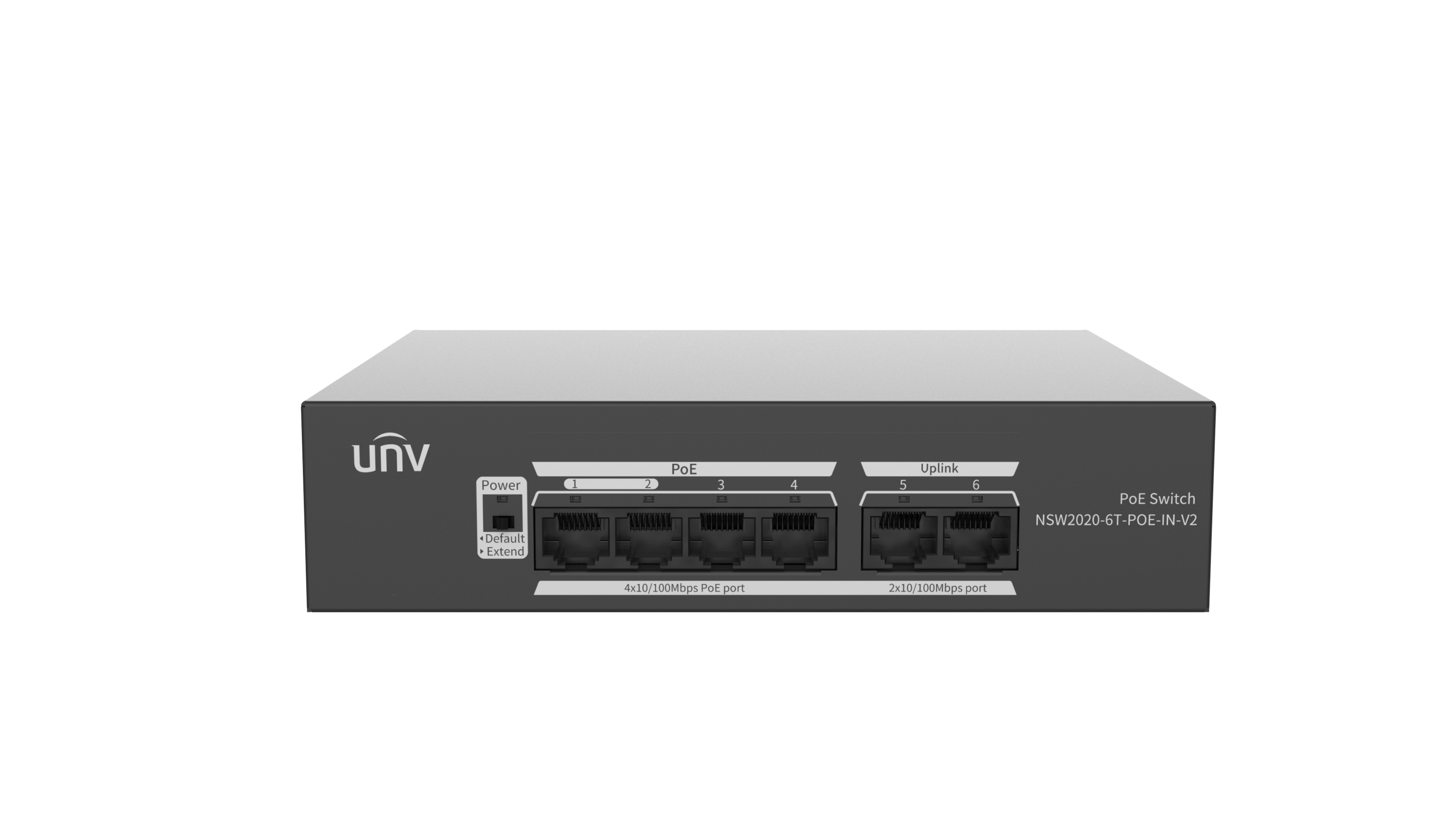

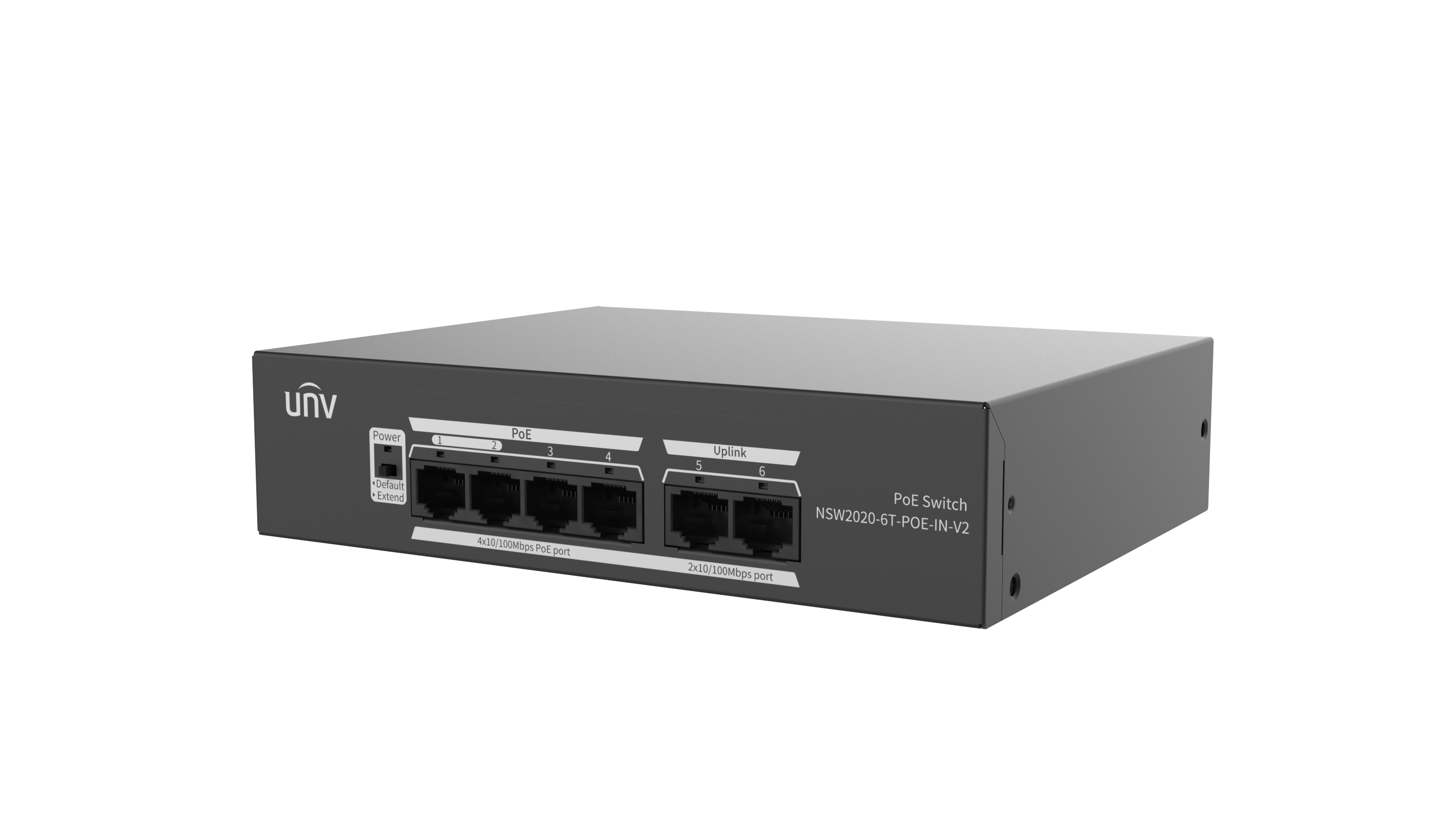

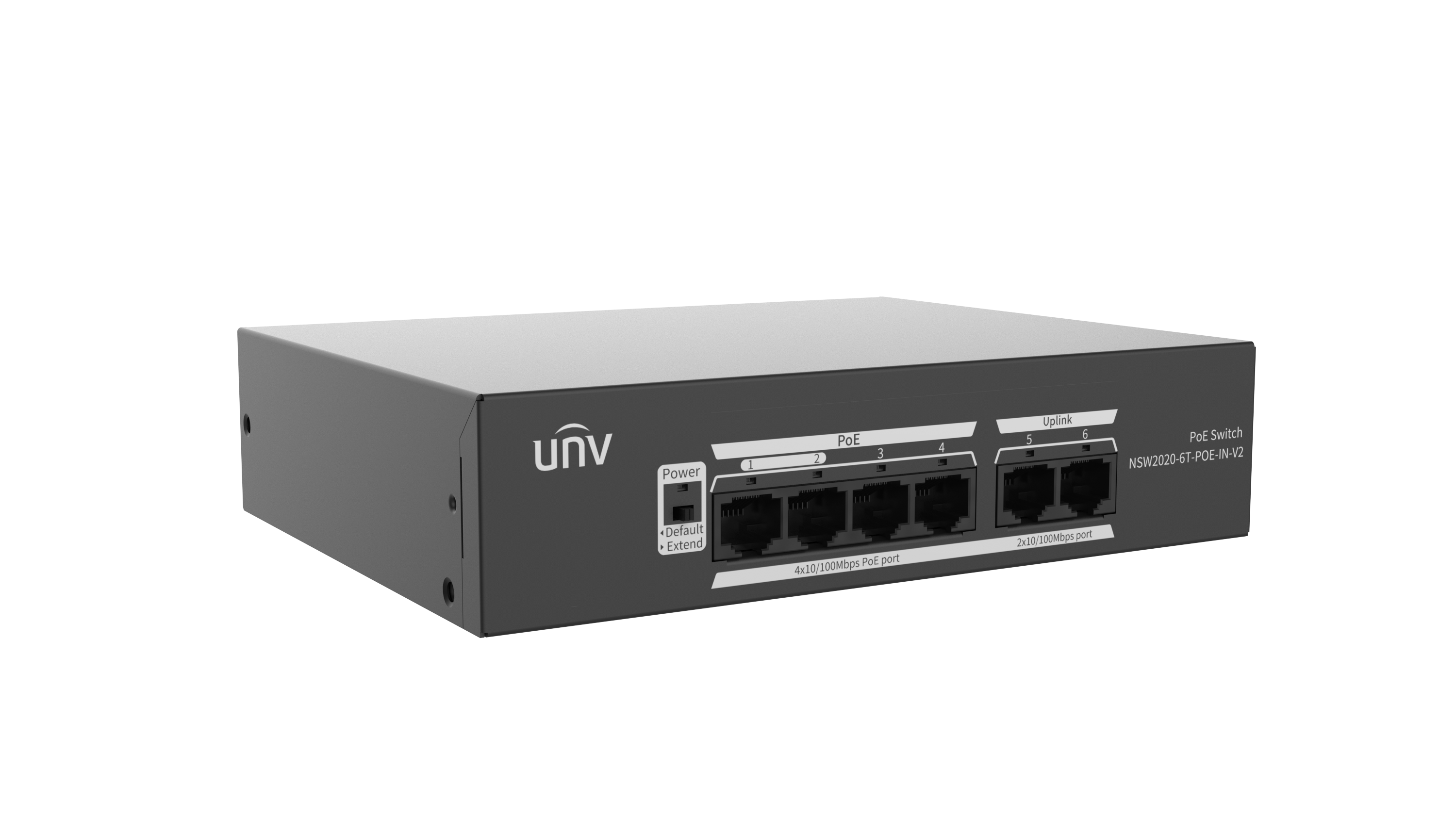

 6 Port 10/100/Mbps Unmanaged PoE Ethernet Switch

This automatic network hub allows 6 devices to be connected at the same time. It can be used to split an internet connection to multiple devices or to create a secure internal network. There is no setup or software to install, just plug in the devices you want and it just works.


Multiple working modes to support your business needs: Default (Normal mode), Extended (Surveillance mode)
• Supports port traffic control
• Supports for secure mode (all downlink ports can communicate only with uplink ports)
• Up to 250m transmission distance on surveillance mode
• Support buffer optimization
• All metal housing, safe and reliable

Ports Type

6×100Mbps network ports (RJ45), including 4 PoE ports

Switching capacity

1.2 Gbps

Packet Buffer

570K bit

Forwarding performance

0.90Mpps

Power Supply

AC: 100 to 240V, 50/60Hz

MAC

2K

PoE Standard

IEEE 802.3 at, IEEE 802.3af

PoE Mode

ModeA (1236), ModeB (4578)

Max.PoE Power

Max capacity:65W
Max capacity for single port: 30W

Prior Ports

1 to 2

Standards

IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at

Max.Power

75W

Dimensions (W×D×H)

169*132*40mm

Weight

0.65KG

Working Mode

Default (Normal mode) : All ports can communicate with each other, EXTEND (Surveillance mode): Transmission distance up to 250 meters

*
*
*
