CK2206

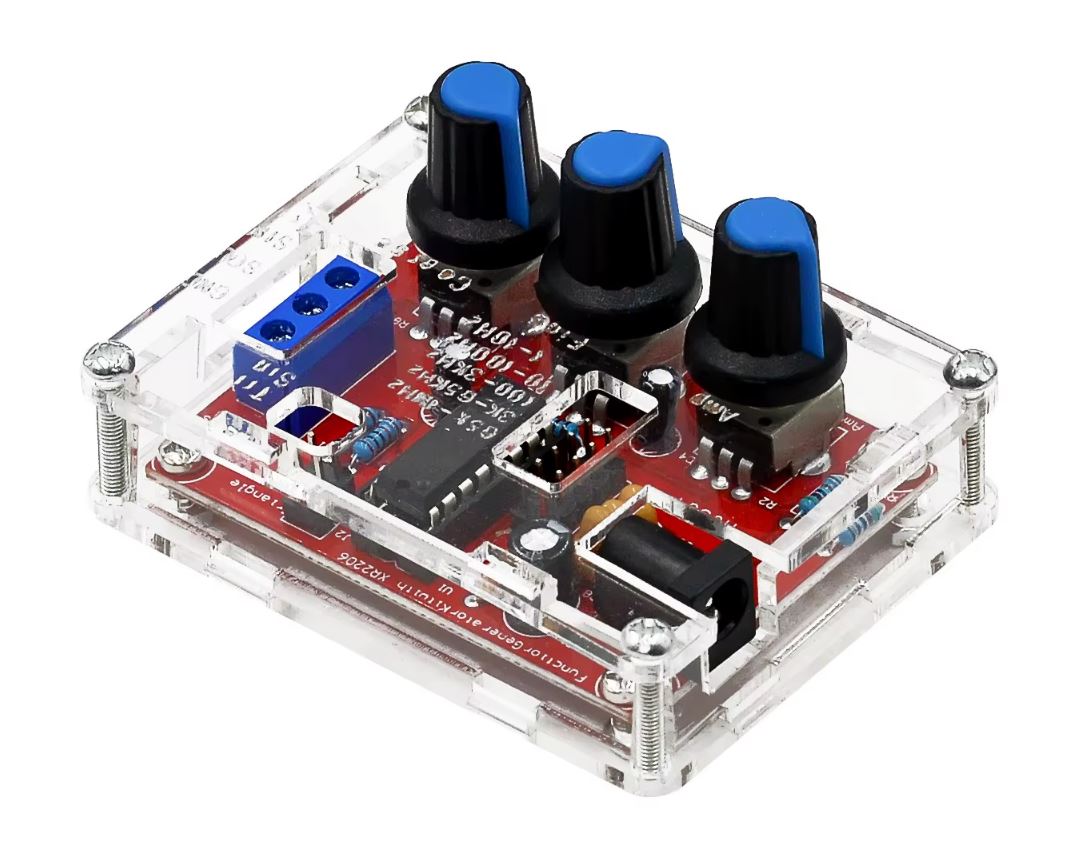

XR2206 Signal Generator Kit 1Hz 100MHz Frequency Range with Adjustable Frequency

XR2206 High precision signal generator


Circuit characteristics:

• Can produce sine wave, triangular wave, square wave

• Frequency can be from 1HZ-1MHZ

• Frequency, amplitude adjustable;

• five-bit precision resolution;

• Frequency adjustment has coarse adjustment and fine adjustment;

• Wide range of power supply, can use external power 9-12V or 9V battery;

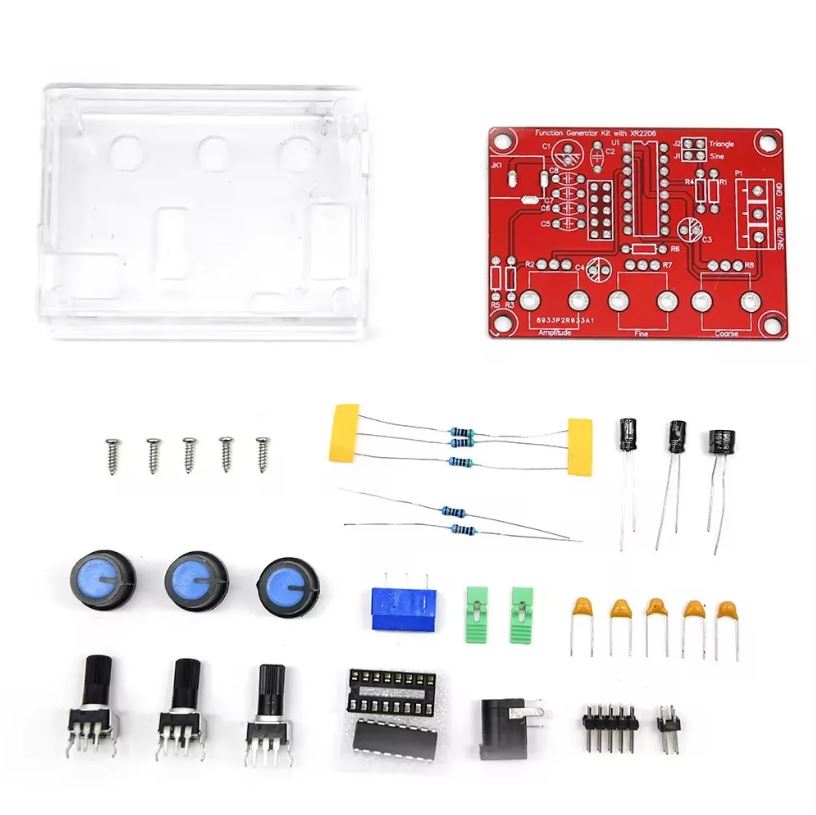

• All in-line components, small number of components, simple installation and debugging.
Parameters: Technical specifications:

Power supply voltage: 9-12V DC input
Waveform: square, sine and triangle
Impedance: 600 ohms + 10%
Frequency: 1hz-1mhz
Sinusoidal wave
Amplitude: 0-3V at 9V DC input
Distortion: less than 1% (1kHz)
Flatness: + 0.05db 1hz expansion
Square wave
Amplitude: 8v (no load) at 9V DC input
Rise time: less than 50ns (1kHz)
Drop time: less than 30ns (1kHz)
Symmetry: less than 5% (1kHz)
Triangular wave
Amplitude: 0-3V at 9V DC input
Linearity: less than 1% (up to 100kHz) 10ma
