ESP32-CAM WiFi Camera Development board USB Bluetooth

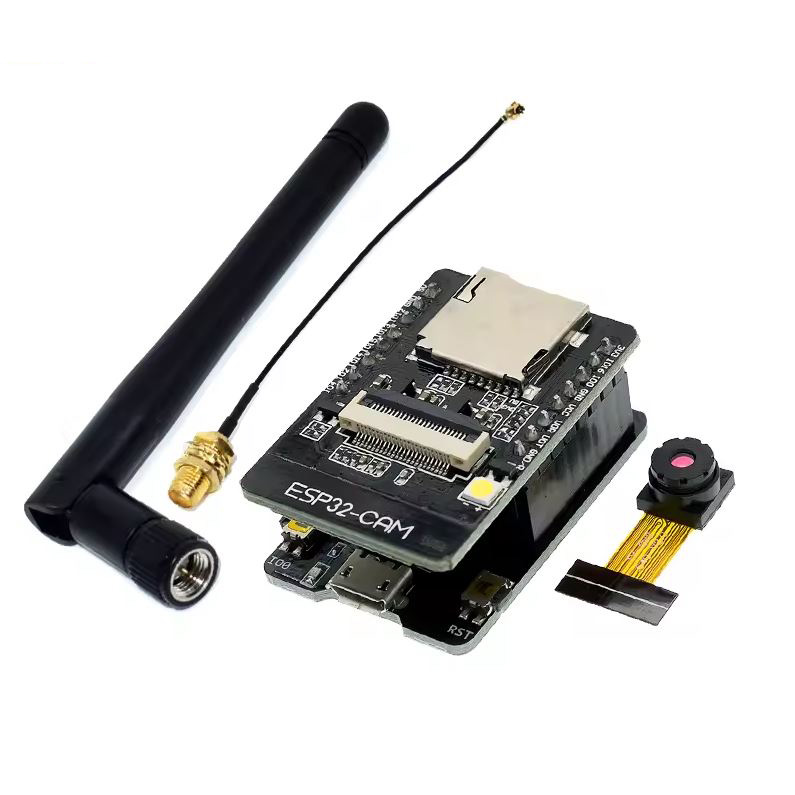

The ESP32 MCU is a popular WiFi and Bluetooth enabled microcontroller with a wide variety of applications, this set is designed to make it easy to make many still and video based camera projects. This development board set includes the following parts

- ESP32-CAM, this is the main board with the ESP-32S microcontroller module, Micro SD card slot, camera connector and LED flash.

- OV2640, this is the camera module that contains a sensitive 2MP (1632x1232) CMOS image sensor and processor

- ESP32-CAM-MB, this is adaptor board that allows you to program the ESP-32 via USB using the built-in CH340C USB driver IC. It also has a convenient reset button and an IO0 button to connect the IO 0 pin to ground for programming or a programable function.

- High Gain Antenna, this can be used instead of the on board antenna to give this kit a longer range for your WiFi. To use this you will need to move a zero Ohm resistor.

Specifications

WiFi: 802.11b/g/n
Bluetooth: BLE
Cpu frequency: 240MHz
Ram: 520Kb SRAM, External 4Mb QSRAM

Supports:

UART/SPI/I2C/PWM/ADC/DAC and other interfaces
OV2640 and OV7670 cameras (OV2640 supplied)
Micro SD card
multiple sleep modes
Embeded LWip and reeRTOS
STA/AP/STA+AP modes
