Vertical Preset Carbon Dustproof, 10 x 5mm spacing 22Kohms

22K is no longer made so please use 25K instead PT15A25K

Vertical Preset Carbon Dustproof, 10 x 5mm spacing 25Kohms

Vertical Preset Carbon Dustproof, 10 x 5mm spacing 47Kohms

9.5mm 20 Turn Precision Cermet Preset Top adjust. 1K ohm

Red & Black 2 core Fig 8 Power Cable For Loudspeaker & other uses 3.2mm x 6.4mm diameter. 15Amps. Priced per 100 Metre Drum

SD & Micro SD Card Reader USB 3.0

Ultra HD 8 Megapixel White Dome IP Camera 30M Night Vision with Tri-Guard and Colorhunter Technology

Superb quality image with true colours and fine definition. Built-in microphone and speaker provide 2 way communication via the EZView app.

UNV Tri-Guard technology integrates Smart Intrusion Prevention (SIP), ColorHunter and Active Deterrence. It’s designed to prevent crimes at night - It can not only alert when events happen, but also get colour information in low-light environment. Smart intrusion prevention significantly reduces false alarm caused by leaves, birds and lights etc. and can accurately focus on people and vehicles.

• For outdoors or indoors (Robust Metal Fully Weatherproof Housing)
• Wide-angle 2.8mm lens.
• Easy to mount in any direction.
• Built-in Microphone and speaker
• Supports MicroSD cards (up to 256GB)
• Supports Power-Over-Ethernet (PoE)

Click here for datasheet

Click here for quick guide

Click here for user manual

Image Sensor: 1/2.8" CMOS Sensor
Resolution: 8.0 Megapixel, 4K (3840x2160)
Lux: 0.003 IR off (F1.6, AGC ON), 0 IR on
Lens: Fixed 2.8mm with IR Cut Filter

• Digital 3D Wide Dynamic Range
• Digital Noise Reduction
• Auto White Balance
• AGC
• Anti-Fog Dual Glass

Power Reqd: 12VDC 875mA
Infra Red Beam: 30 Metres
Terminations: RJ45& DC 2.1 x 5.5mm on Flying Leads
Size (D x H): 111 X 95mm

Lead 3.5mm stereo jack plug to 3.5mm jack socket 3M Screened Lead

Headphone, audio AUX etc extension cable.

Lead 3.5mm stereo jack plug to 3.5mm jack socket 5M Screened Lead

Headphone, audio AUX etc extension cable.

Flexible PVC Mains Cable 3 core 3A black. (Price per metre continuous length).

Flexible PVC Mains Cable 3 core 3A black. Price per 100 metre Drum

Red & Black 2 core Fig 8 Power Cable For Loudspeaker & other uses 4mm x 8mm diameter. 25Amps. Priced per Metre

3 Phono plugs (RCA) to 3 Phono Plugs on a 1.2 metre screened cable. (Phono Video/Audio Lead or RGB lead)

ELUM 4.7uF 100V, High Quality Audio Bipolar Axial Electrolytic Capacitor

Tolerance 20%

Dimensions 10 x 17mm (d x l)

Reversible Electrolytic Axial Audio Capacitor

Excellent for Speaker Crossover Units & Filters

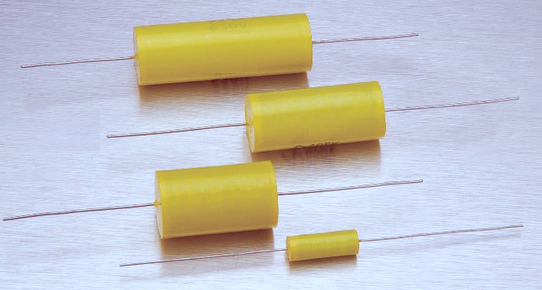

Monacor - Super High Definition Bipolar Audio Axial Capacitor

Extra Low Loss Polypropylene Film 4.7uF 250V ±5% Tolerance

Size 19x31mm

3 Phono plugs (RCA) to 3 Phono Plugs on a 5 metre screened cable.

Phono Video/Audio Lead or RGB lead

Carbon Film Resistor 1/4 Watt 5% 10 Pack. 1M ohm

4K Ultra High Definition 16 Camera 8 Megapixel Night & Day Black Eyeball Dome CCTV System

All our systems are bespoke; they are not pre-boxed kits. You can select any mix of our cameras. Just phone  020 8452 0161.

• 8MP gives stunning & detailed colour evidence
• Audio recording provides an additional layer of security

•  Free and easy mobile access using UNV-Link app - NO SUBSCRIPTION REQUIRED
•  Free in-store and UK phone support
• Advanced motion detection technology
  •  Plug-and-play system; no complex set-up procedures


Cameras are suitable for indoor & outdoor use. All cameras have 20M night vision.

Watch your cameras remotely using the UNV-Link app (Android | iOS)

Features:
*  Realtime live & recorded Images
*  Easy to use user-friendly interface
*  Push notifications
*  View live on PCs, laptops, iPhones, android phones and tablets
*  8 Megapixel high definition eyeball dome cameras
*  Supplied with 1TB HDD, with option for 2TB, 4TB, 6TB, 8TB, 12TB or 16TB

Contents of Package:
16 UAC-T128-ADF28MS-B 8 Megapixel colour black eyeball dome cameras
1  Uniview XVR302-16Q3 High Definition 8MP 16 Channel DVR
1 12V lockable power supply
2 100M drums of shotgun RG59 + power cable
1 HDMI lead for DVR to monitor
32 Easyfit twist on BNC plugs
16 Power plugs (screw-fit)
HD monitor available as an option

XVR datasheet


Hard Drive Selection Guide
The following times are based on high quality recordings.
These times can be greatly extended by changing recording quality settings or by using motion detection/timed recording.

16 cameras at 5MP:

1TB:             2 days
2TB:             3 1/2 days
4TB:             7 days
6TB:             10 1/2 days
8TB:             14 days

16 cameras at 1080p:

1TB:             3 days
2TB:             6 days
4TB:             12 days
6TB:             18 days
8TB:             24 days

Ceramic Capacitor 1KV 10nF (0.01

Ceramic Disc 63VDC 5% 2.5mm spacing 10nF (0.01uF)

Axial Polypropylene Film & Foil capacitor 1% Tolerance 0.01uF 63V (10000pF, 10nF)

Monlolythic Ceramic Capacitor 50V, Y5V dielectric. 5mm pitch 100nF (0.1uF)

Ceramic Disc 63VDC 5% 2.5mm spacing 100nF (0.1uF)

Monlolythic Ceramic Capacitor 50V, Y5V dielectric. 5mm pitch 220nF (0.22uF)

Monlolythic Ceramic Capacitor 50V, Y5V dielectric. 5mm pitch 470nF (0.47uF)
