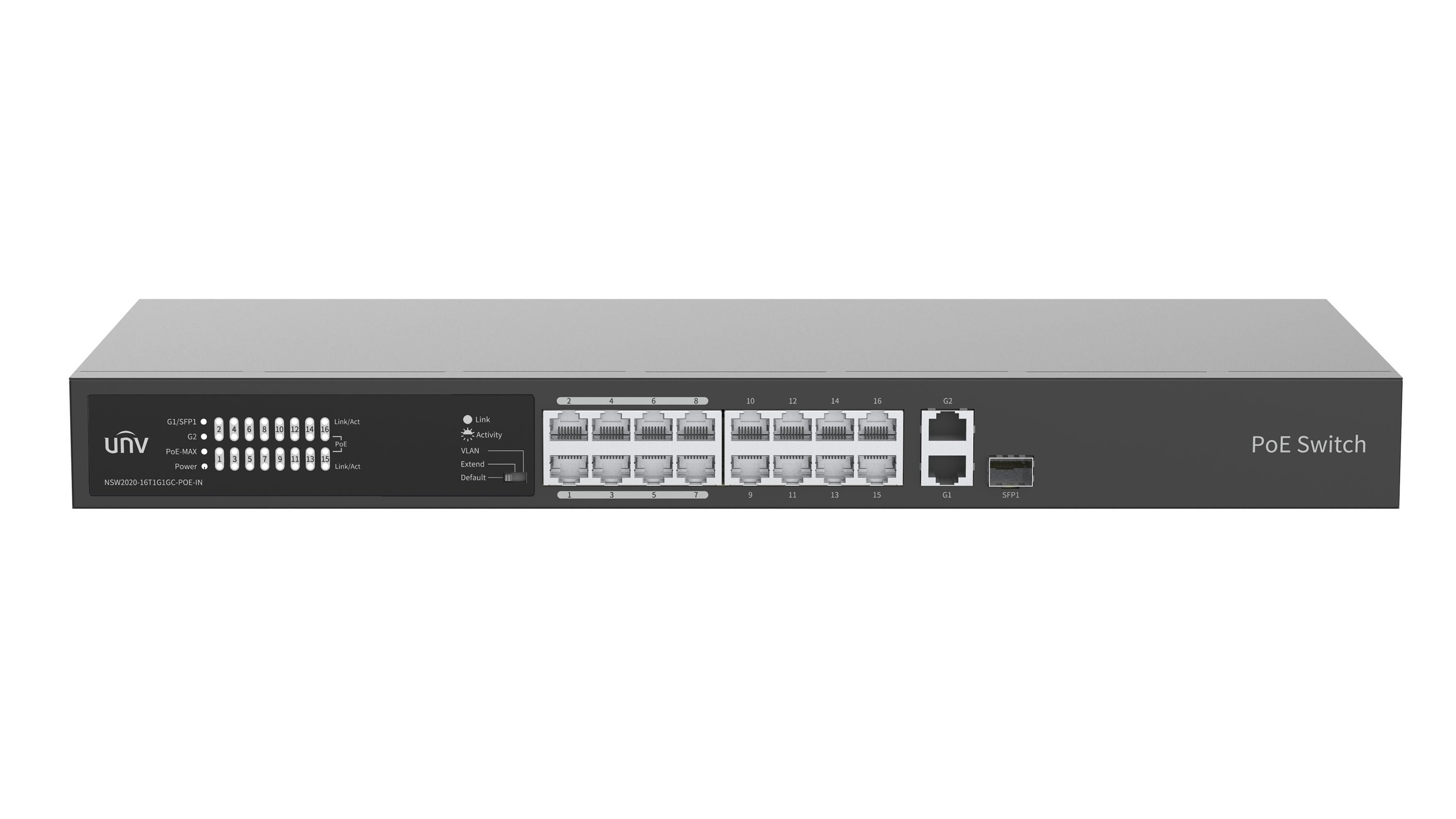

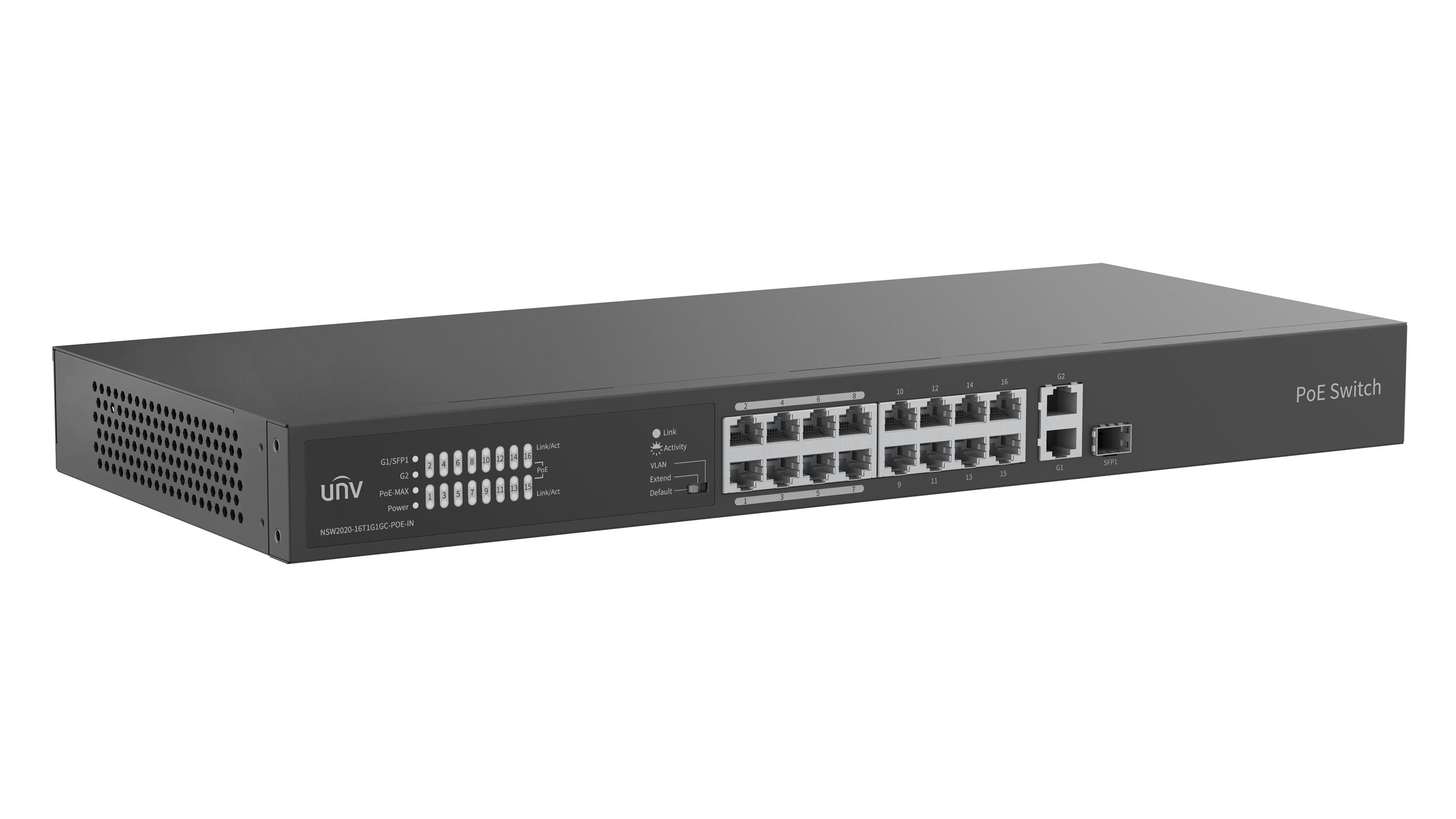

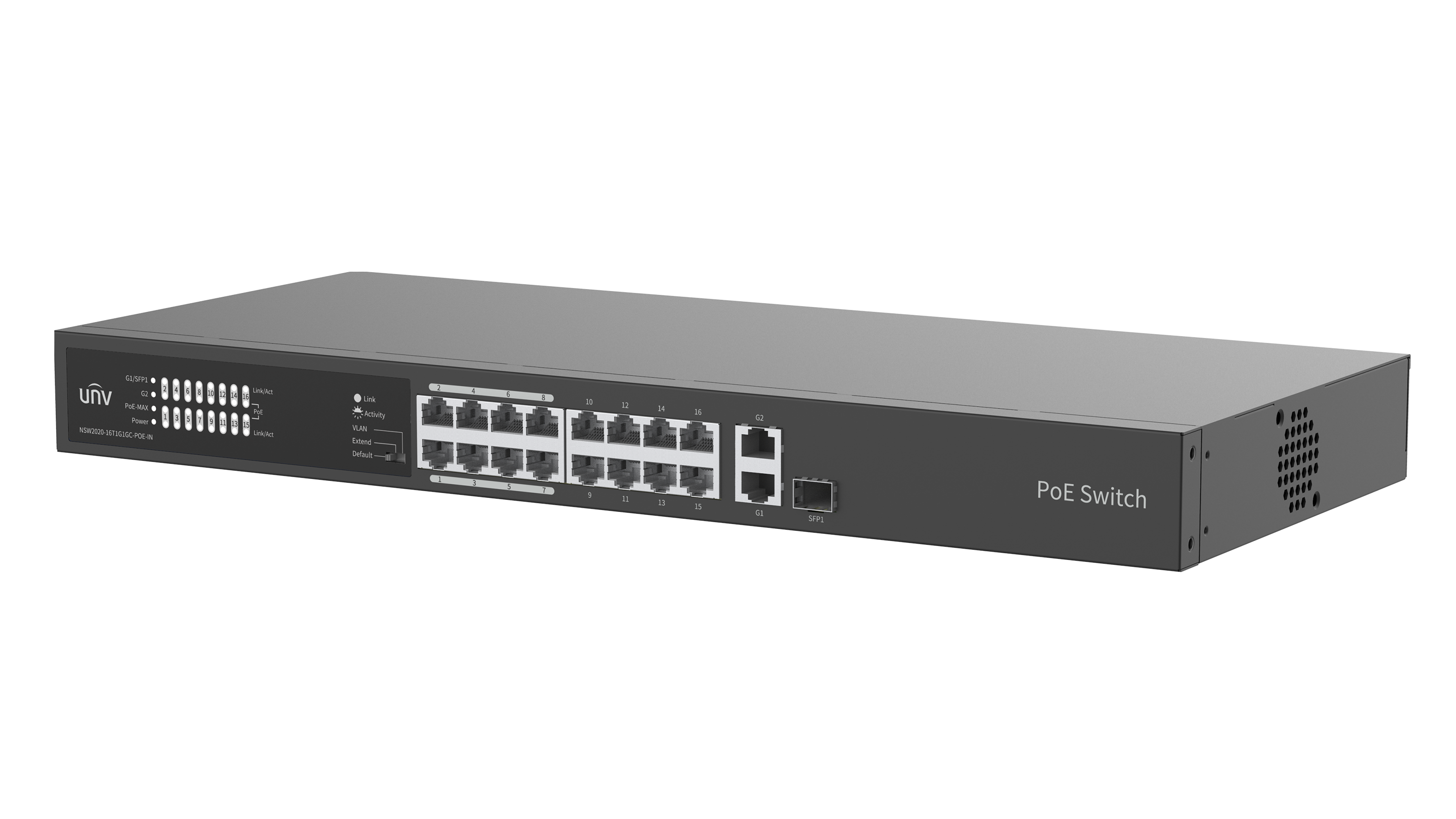

16 + 2 Port PoE Network Switch 10/100 Mbps

Category: Controllers, Switches & Video Adaptors

Added: 19/01/2026

Printable Version

Images Ask a question about this product

Our Price

£145.00

(inc VAT £174.00)

Weight 0.70 Kg

Item Number NSW2020-16T1GT1GC-POE-IN

Quantity

Description

18 Port 10/100/Mbps Unmanaged PoE Ethernet Switch

This automatic network hub allows 18 devices to be connected at the same time. It can be used to split an internet connection to multiple devices or to create a secure internal network. There is no setup or software to install, just plug in the devices you want and it just works.

Multiple working modes to support your business needs: Default (Normal mode), Extended (Surveillance mode)
• Supports port traffic control
• Supports for secure mode (all downlink ports can communicate only with uplink ports)
• Up to 250m transmission distance on surveillance mode
• Support buffer optimization
• All metal housing, safe and reliable

Ports Type	16×100Mbps PoE ports (RJ45)+ 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports
Switching capacity	7.2 Gbps
Packet Buffer	4 M bit
Forwarding performance	5.36Mpps
Power Supply	AC: 100 to 240V, 50/60Hz
MAC	16K
PoE Standard	IEEE 802.3 at, IEEE 802.3af
PoE Mode	ModeB (4578)
Max.PoE Power	Max capacity:250W Max capacity for single port: 30W
Standards	IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az
Cooling Fans	1
Max.Power	265W
Dimensions (W×D×H)	44019544mm
Weight	2.12KG
Working Mode	Default (Normal mode) : All ports can communicate with each other, VLAN (Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time, Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports
