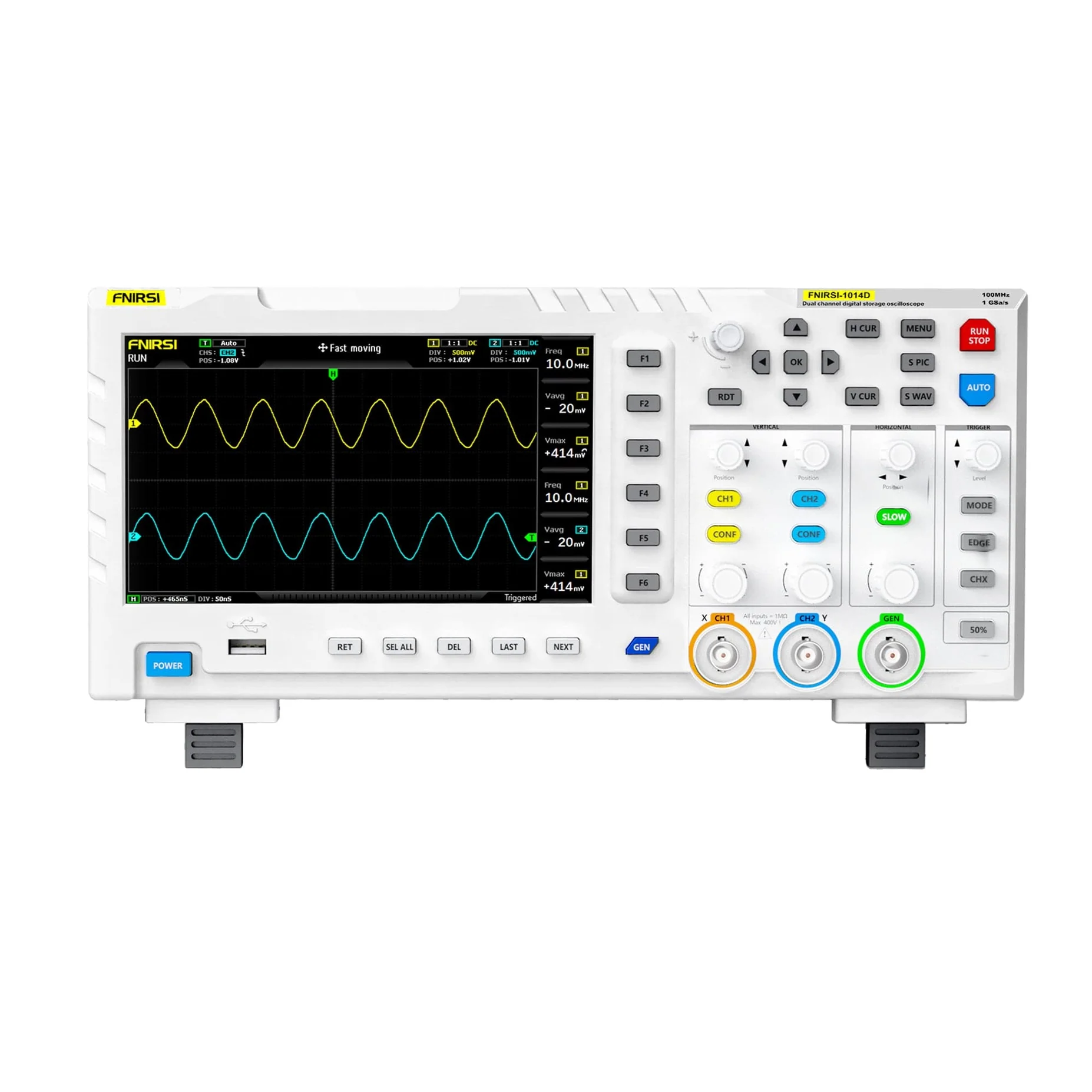

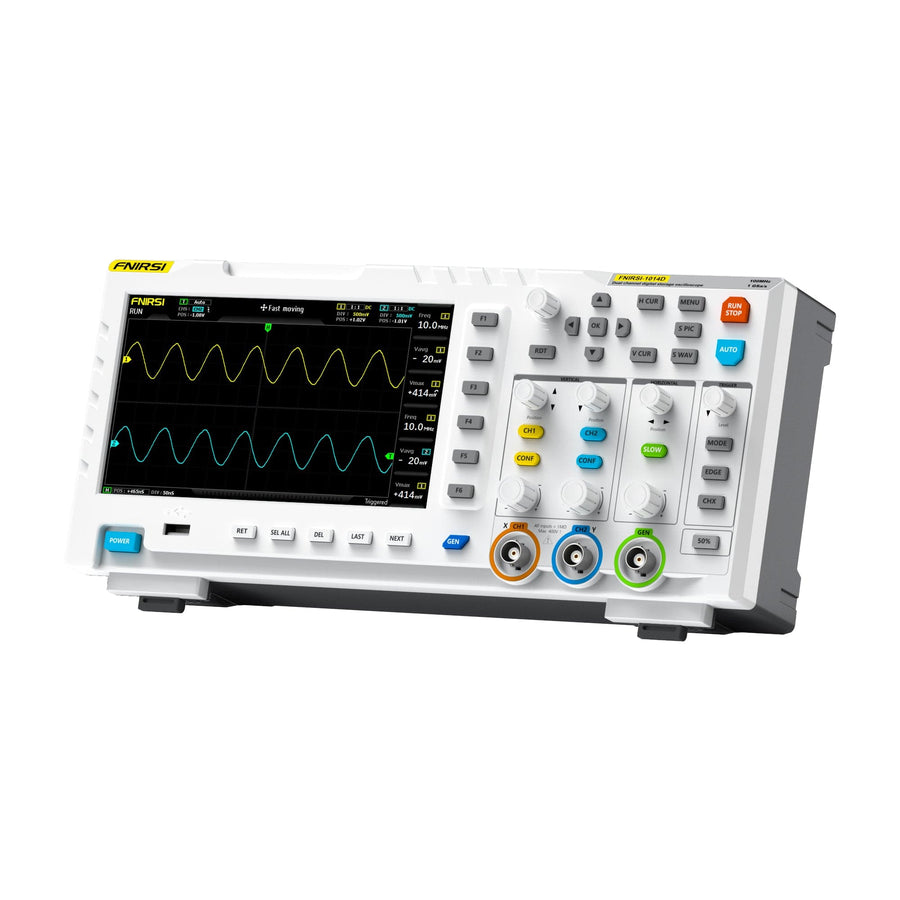

FNIRSI-1014D 2-in-1 Dual Channel 100MHz 1GS/S Digital Oscilloscope with Signal Generator
Advanced Signal Analysis and Generation The
FNIRSI-1014D Digital Oscilloscope is a versatile tool designed for both
hobbyists and professionals in the electrical field. With a dual channel
input and a 100MHz*2 analogue bandwidth, this oscilloscope is capable of
capturing signals with precision and clarity. The 1GSa/s real-time
sampling rate ensures that even the fastest signals are captured without
any loss of detail. The oscilloscope's trigger modes, including single,
normal, and auto, allow for flexible triggering options, making it
suitable for both periodic and aperiodic signals.
Comprehensive Signal Generation and Storage The
FNIRSI-1014D oscilloscope is not just a signal analyser; it doubles as a
signal generator. With its built-in DDS function, it can produce 12
standard function signals and a customisable chopping signal. The
chopping output feature, with a 2.5vpp amplitude, is particularly useful
for generating irregular shaped signals. The oscilloscope's storage
depth of 240Kbit and 1GB storage space allow for the storage of up to
1000 screenshots and 1000 sets of waveform data, making it an ideal tool
for capturing and analysing complex signals.
User-Friendly Interface and Convenience The
oscilloscope's user-friendly interface is designed to enhance the user
experience. The 7-inch 800 * 480 resolution color TFT LCD display
provides bright and clear visuals, while the cursor measurement function
simplifies manual reading of amplitude and frequency parameters. The
one-button auto feature automatically adjusts the oscilloscope for
optimal viewing, and the one-button waveform storage and screenshot
function make it easy to capture and save important waveforms. The
powerful waveform image manager allows for efficient browsing, viewing,
and analysis of captured signals, making it a valuable tool for both
hobbyists and professionals.

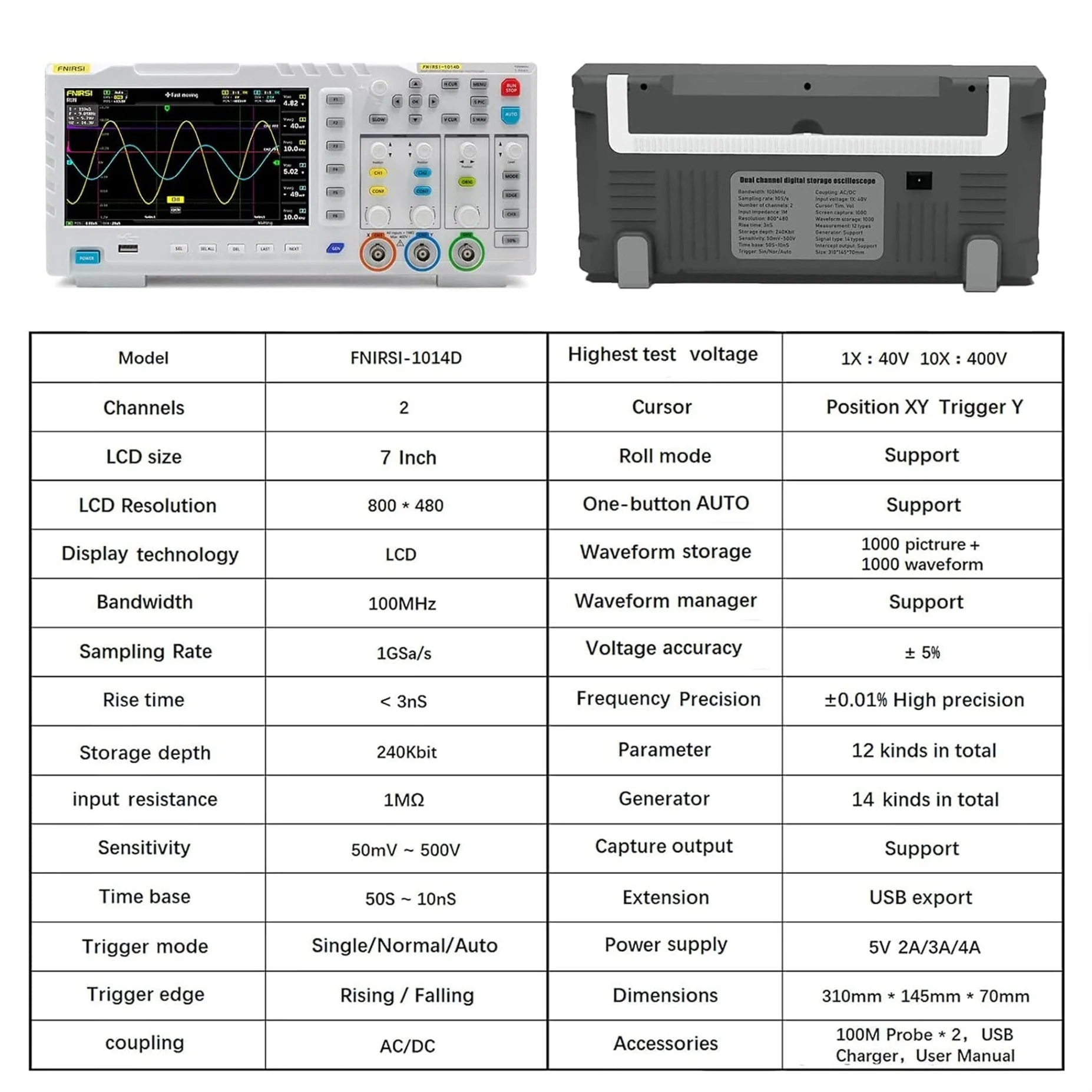

Features:
Dual Channel
2 in 1: Digital Oscilloscope + DDS Function Signal Generator
1GSA/S sampling rate, 100MHz * 2 analog bandwidth.
Complete trigger function (single/normal/automatic).
Capable of storing up to 1000 customized chopping signals.
high-voltage protection module.
One-button AUTO and adaptive trigger (25%, 50%, 75%).
